Leeson 120946.00 AC Motor 2 hp 1725 rpm Three Phase 208-230 Voltage Rating

Product Description

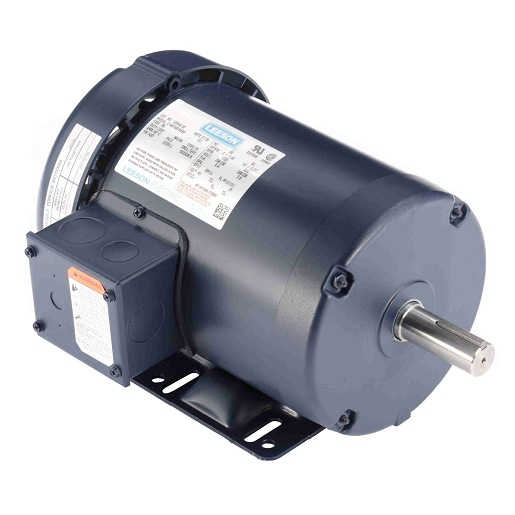

Leeson 120946.00 AC Motor is a reliable choice for HVAC applications. This motor has a power rating of two horsepower and operates at a speed of one thousand seven hundred twenty-five rpm. It is designed for three-phase electrical systems and can handle voltage ratings between two hundred eight to two hundred thirty volts.

• Power Rating: 2 hp
• Speed: 1725 rpm
• Voltage Rating: 208-230

Product Highlights

This AC motor features a rigid base mount and a totally enclosed fan cooled (TEFC) enclosure, which ensures durability in various environments. The 145T frame size allows for easy installation in standard applications.

Product Information

Standard Information

• Brand: Leeson
• MPN: 120946.00

Technical Specifications

• Frame Material: Rolled Steel
• Drive End Bearing: 6205
• Open End Bearing: 6203
• Phase: Three Phase
• Full Load Amps: 6.4
• Hz: 60
• Service Factor: 1
• Poles: 4
• Enclosure: TEFC
• Frame: 145T
• Efficiency Group: 64 %
• Mounting: Rigid Base
• Voltage Rating: 208-230
• Motor Application: HVAC
• Weight: 38.0 LB
• EAN or UPC: 691720016350
