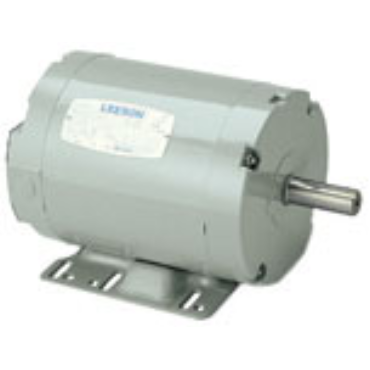

Leeson 120379.00 | AC Three Phase Agricultural Duty Motors

Product Description

The Leeson 120379.00 is an AC Three Phase Agricultural Duty Motor designed for reliable performance in agricultural applications. This motor operates at three horsepower and is capable of reaching a speed of three thousand four hundred fifty revolutions per minute. With a TENV enclosure, it is built to withstand challenging environments while ensuring efficient cooling.

• Three phase motor design
• Rigid mounting capability
• High efficiency rated at 84%

Product Highlights

This motor is suitable for tasks requiring robust power delivery such as aeration fans. Its design includes features like a rigid frame and a durable rolled steel construction, which ensures longevity and reliability. It must be operated in an airstream to maintain effective cooling and prevent overheating.

Product Information

Standard Information

• Brand: Leeson
• Availability: Available to Order

Technical Specifications

• MPN: 120379.00
• Frame Material: Rolled Steel
• Motor Application: Aeration Fan
• Input Phase: Three Phase
• HP: 3
• RPM: 3450
• Voltage Rating: 208-230/460 V
• Weight: 41.0 LB
• Frame: 140
• Efficiency Group: 84
• Service Factor: 1
• Enclosure: TENV
• Rotation: Reversible
• Full Load Amps: 8.4-7.6/3.8
• C Dimension: 12.34
• Insulation: F4
• Open End Bearing: 6203
• Drive End Bearing: 6205
