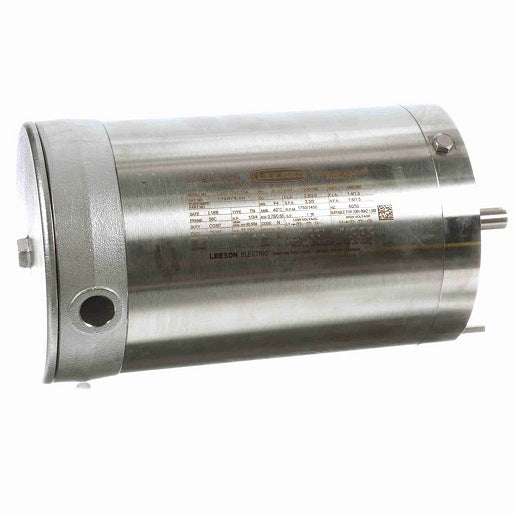

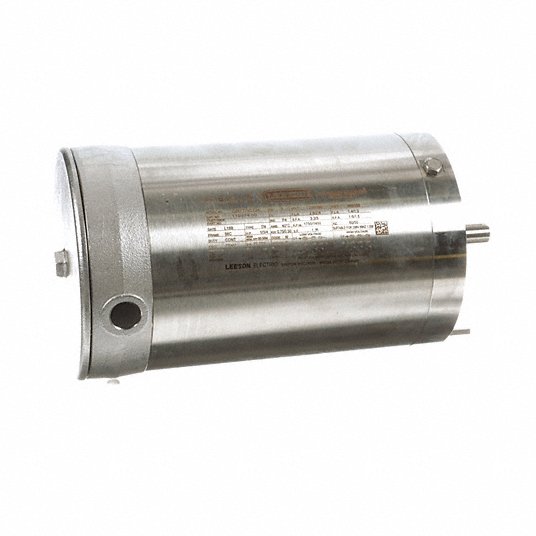

Leeson 119974.00 AC Motor 1 hp 1750 RPM Three Phase 230/460

Product Description

The Leeson 119974.00 AC Motor is a versatile choice for various applications. Designed for general purpose use, this motor provides efficient performance.

• 1 horsepower rated
• Operates at 1750 RPM
• Three-phase power with dual voltage options

Product Highlights

This motor is suitable for a range of industrial tasks, thanks to its robust design and reliable specifications.

Product Information

Standard Information

• Product Link: View Product
• Brand: Leeson

Technical Specifications

• Insulation: F
• Enclosure: TENV
• Mounting: Round
• Drive End Bearing: 6205
• Hz: 60
• Motor Application: General Purpose
• Full Load Amps: 2.8/1.4
• RPM: 1750
• Voltage Rating: 230/460
• Service Factor: 1.15
• Poles: 4
• Rotation: Reversible
• Enclosure Designation: Totally Enclosed Non Ventilated
• Open End Bearing: 6205
• Frame: 56C
• Efficiency Group: 85.5%
• Frame Material: Stainless Steel
• Phase: Three Phase
• Weight: 51.0 LB
• EAN or UPC: 691720991404
