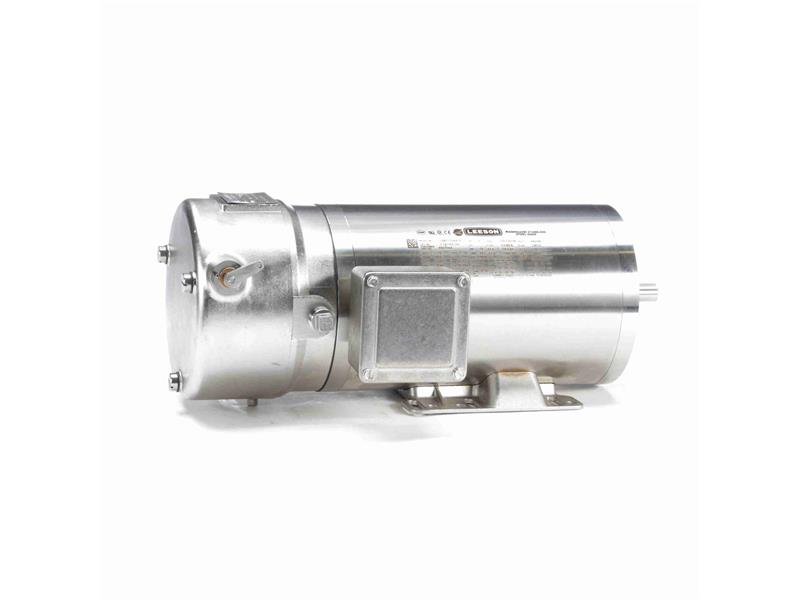

Leeson 119785.00 AC Motor 1 Hp 1750 RPM Three Phase 208-230/460

Product Description

The Leeson 119785.00 is a reliable AC motor with a power capacity of 1 horsepower. This motor runs at a speed of 1750 RPM and operates on three-phase power. It is designed for a variety of applications, including use in brake motors. The motor is built to provide efficient performance under a range of conditions.

• Power capacity: 1 hp
• Voltage rating: 208-230/460
• Mounting type: Rigid base

Product Highlights

This motor features a TENV enclosure that protects internal components from contaminants. It is capable of running at higher efficiency and has a service factor of 1.15.

Product Information

Standard Information

• Brand: Leeson
• Part Number: 112786568

Technical Specifications

• Motor Application: Brake Motor
• Insulation: F
• Frame Material: Stainless Steel
• Frequency: 60 Hz
• RPM: 1750
• Mounting: Rigid Base
• Open End Bearing: 6205
• Efficiency: 85.5%
• Full Load Amps: 3-2.8/1.4
• Enclosure: TENV
• Voltage Rating: 208-230/460
• Phase: Three Phase
• Service Factor: 1.15
• Rotation: Reversible
• Poles: 4
• Drive End Bearing: 6205
• Enclosure Designation: Totally Enclosed Non Ventilated
• Frame: 56HC
• Weight: 73 lb
• EAN or UPC: 691720102862
