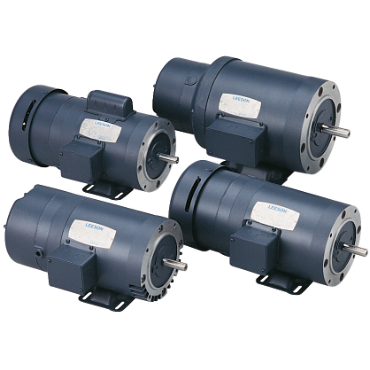

Leeson 119564.00 Brakemotor 1 hp 1800 rpm 208-230/460 Volts

Product Description

The Leeson 119564.00 Brakemotor offers performance with a power rating of one horsepower and operates at 1800 revolutions per minute. This brakemotor is suitable for use with 208-230/460 volts and features a TEFC enclosure.

• Fail-safe positive braking system
• Spring set brakes for stopping
• Manual release for power off operation

Product Highlights

This brakemotor includes a manual release feature that resets automatically. It is equipped with an efficient design that stops the load when power is turned off.

Product Information

Standard Information

• Brand: Leeson
• MPN: 119564.00

Technical Specifications

• Power: 1 hp
• Motor Speed: 1800 rpm
• Voltage Rating: 208-230/460
• Frequency: 60 Hz
• Frame Size: 56C
• Phase: Three Phase
• Poles: 4
• Weight: 32.0 LB
• Brake Torque: 6 ft lb
• Efficiency: 85.5%
• Full Load Amps: 3.2-3.2/1.6
• Enclosure Type: TEFC
• Rotation: CW
• Mounting Type: C-Face - Less Base
