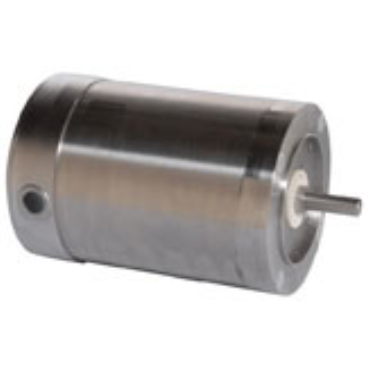

Leeson 119520.00 Extreme Duck Ultra Washguard Stainless Steel AC Motor

Product Description

The Leeson 119520.00 is a robust stainless steel AC motor designed for washdown applications. This motor is suitable for demanding environments where water and contaminants are a concern. It features a standard three-phase input and operates efficiently at 1.5 horsepower with a speed of 1800 rpm.

• IP69 certified enclosure protection
• Easily removable Q-Car rotor cartridge for simple bearing replacement
• Colored, chemical-resistant leads for secure connections

Product Highlights

TheLeeson 119520.00 AC Motor combines advanced sealing technology with robust materials, ensuring longevity in harsh operating conditions.

Product Information

Standard Information

• Brand: Leeson
• Part Number: 112744615

Technical Specifications

• HP: 1.5
• Input Phase: Three Phase
• Voltage Rating: 208-230/460
• Full Load Amps: 4.6-4.8/2.4
• RPM: 1800
• Frame Size: 56C
• Weight: 59.025 LB
• Enclosure Type: TEFC - Totally Enclosed Fan Cooled
