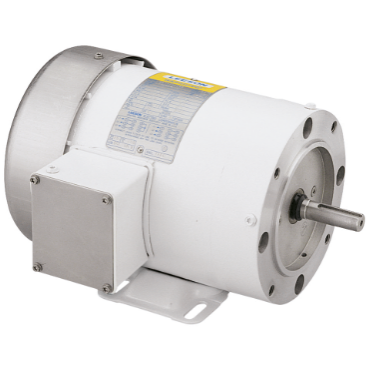

Leeson 119482.00 Washdown Duty AC Motor 2 HP 1800 RPM 208-230/460

Product Description

Leeson 119482.00 is a washdown duty AC motor designed for various applications that require durability and reliability. It provides 2 horsepower and operates at 1800 RPM. This motor is built for wet environments, featuring a moisture-shedding design that protects its internal components.

• Two horsepower capacity
• Suitable for washdown applications
• Standard voltage of 208-230/460

Product Highlights

This motor is ideal for environments that require moisture resistance and durability. Its stainless steel components and unique design ensure long-lasting performance even in tough conditions.

Product Information

Standard Information

• Brand: Leeson
• Part Number: 112786515

Technical Specifications

• Phase: Three Phase
• Enclosure Designation: Totally Enclosed Fan Cooled
• Poles: 2
• Drive End Bearing: 6205
• Hz: 60 Hz
• Open End Bearing: 6203
• Enclosure: TEFC
• Frame Material: Rolled Steel
• Mounting: C-Face - With Base
• Frame: 56HC
• Brake Feature: No
• Service Factor: 1.15
• Efficiency Group: 85.5 %
• HP: 2
• Useable at 208V: Yes
• Voltage: 208-230/460
• Insulation: F
• Washdown Duty: Yes
• RPM: 1800
• Full Load Amps: 5.2-4.8/2.4
• Rotation: CW
• Motor Application: General Purpose
• Weight: 51.0 LB
• EAN or UPC: 691720051955
