Leeson 119478.00 AC Motor 1 HP 1170 RPM

Product Description

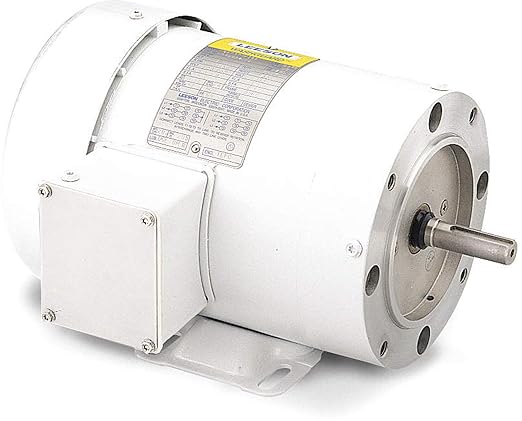

The LEESON 119478.00 AC Motor is a 1 HP motor with a speed of 1170 RPM. This three-phase motor operates at 60 Hz and is designed for general-purpose applications. It features a rigid base mount and a TEFC enclosure, making it suitable for use in washdown environments. Operates at 208-230/460 voltage rating.

• 1 HP power rating
• Operates at 1170 RPM
• TEFC enclosure for protection against environmental factors

Product Highlights

Designed for wet, humid areas, this motor is ideal for food processing, chemical processing, and pharmaceutical plants.

Product Information

Standard Information

• Brand: LEESON
• Manufacturer Part Number: 119478.00
• Country of Origin: United States

Technical Specifications

• Voltage Rating: 208-230/460
• Poles: 6
• Insulation Class: F
• HP: 1
• Mounting Type: Rigid Base
• Frequency: 60 Hz
• Frame Size: 56HC
• Enclosure: TEFC
• Phase: Three Phase
• Rotation: Reversible
• Efficiency: 82.5 %
• Full Load Amps: 3.8-3.8/1.9
• Service Factor: 1.15
• Frame Material: Rolled Steel
• Motor Application: General Purpose
• RPM: 1170 rpm
• Motor Design: 3-Phase
• Duty Cycle: Continuous
• Max. Ambient Temp.: 40 Degrees C
• Motor Mounting Position: Horizontal
• Nominal Efficiency: 82.5 %
• Standards: BISSC Approved, CE, CSA Certified, UL Recognized
• Shaft Dia.: 5/8 in
• Shaft Length: 1 7/8 in
• Motor Bearings: Ball
• Overall Length: 13 3/8 in
• Bolt Circle Dia.: 5 7/8 in
• Length Less Shaft: 11 7/16 in
• Motor Shaft Design: Keyed
• Motor Frame Material: Steel
• Motor Shaft Rotation: CWSE
• Voltage Compatibility: 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
• Motor Enclosure Design: Totally Enclosed Fan-Cooled
• Motor Thermal Protection: None
• Application: Washdown Epoxy
• Output KW: 0.75
• Enclosure IEC: IP55
• Number of Speeds: 1
• Electrical Type: Squirrel Cage Induction Run
• Starting Method: Across The Line
• Design Code: B
• KVA Code: K
• Ambient Temperature: 40 °C
• Current: 3.8/1.9 A
• Mounting: Rigid Base
• Shaft Type: NEMA 56
• Frame Length: 7.50 in
• Shaft Diameter: 0.625 in
• Shaft Extension: 1.88 in
• Agency Approvals: CSA, CE, UL
