Leeson 119468.00 Washdown Duty AC Motor 1 HP 208-230/460 Volts Replacement MPN

Product Description

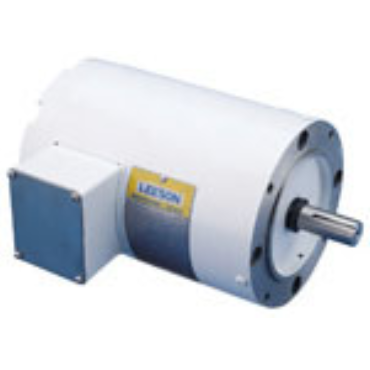

Leeson 119468.00 is a washdown duty AC motor designed for durability and efficiency. This motor operates at one horsepower and has a speed of one thousand eight hundred revolutions per minute. It is suitable for use with voltage ratings of two hundred eight to two hundred thirty or four hundred sixty volts. The 56C frame size ensures compatibility with a variety of applications.

• Durable white epoxy finish approved by USDA
• Moisture-resistant interior components
• IRIS inverter-rated insulation for variable frequency drive use

Product Highlights

This motor meets the IP55 protection standard, making it suitable for environments where water and dust exposure are a concern. Its stainless-steel components provide extra durability against wear and tear.

Product Information

Standard Information

• Brand: Leeson
• Part Number: 112786503

Technical Specifications

• Horsepower: 1 HP
• Phase: Three Phase
• RPM: 1,800 rpm
• Voltage Rating: 208-230/460
• Enclosure Type: Totally Enclosed Fan Cooled (TEFC)
• Efficiency Group: 85.5%
• Weight: 35.0 LB
• Mounting: C-Face - Less Base
