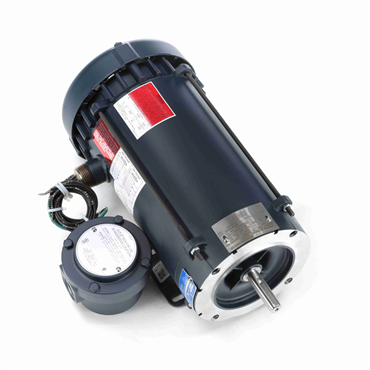

Leeson 119443.00 AC Motor 3 hp 3450 rpm Three Phase 230/460

Product Description

The Leeson 119443.00 is an AC motor designed for reliable performance. It operates at three horsepower and features a maximum speed of three thousand four hundred fifty revolutions per minute. This motor is suitable for explosion-proof applications.

• 3 hp power output
• Voltage rating of 230/460
• Reversible rotation for versatile applications

Product Highlights

This motor is ideal for various industrial applications requiring robust performance.

Product Information

Standard Information

• Brand: Leeson
• MPN: 119443.00

Technical Specifications

• Motor Application: Explosion Proof
• Service Factor: 1
• Voltage Rating: 230/460
• Mounting: Rigid Base
• Frame Material: Rolled Steel
• Open End Bearing: 6203
• Hz: 60
• Poles: 2
• Frame: 56C
• Drive End Bearing: 6205
• Full Load Amps: 7.6/3.8
• Rotation: Reversible
• RPM: 3450 rpm
• Enclosure: EPFC
• Efficiency Group: 87.5 %
• Enclosure Designation: Explosion Proof Fan Cooled
• Insulation: B
• HP: 3
• Phase: Three Phase
• Weight: 66.0 LB
• EAN or UPC: 691720047187
