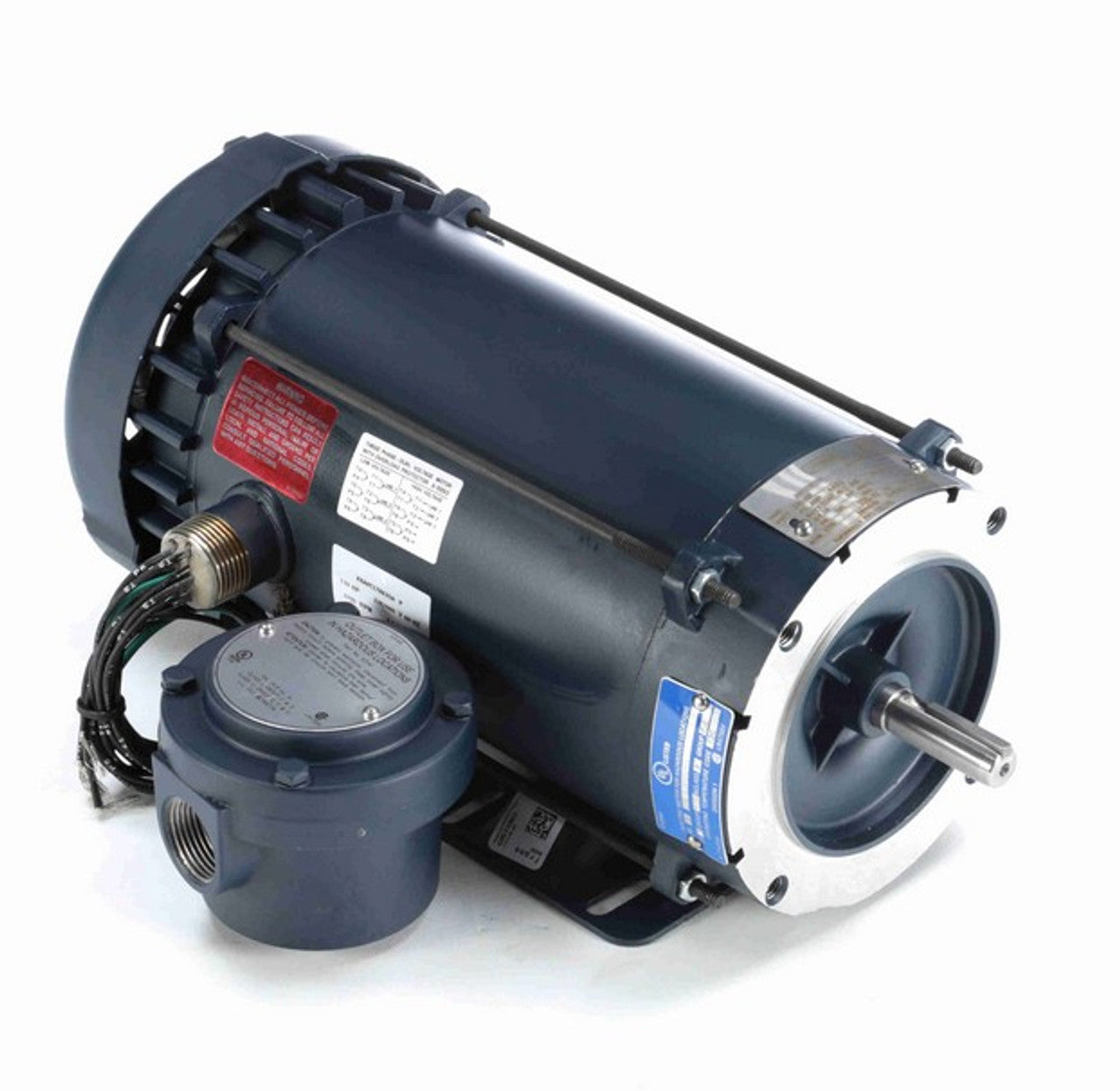

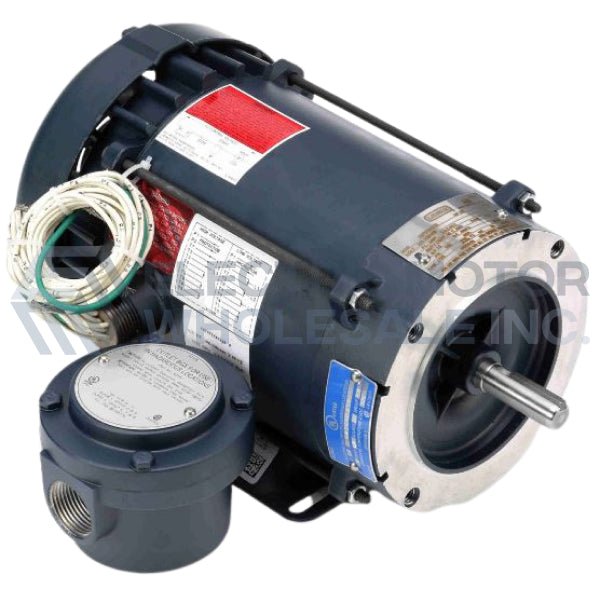

Leeson 119440.00 AC Motor 1 1/2 hp 60 Hz 230/460

Product Description

The Leeson 119440.00 is a reliable AC motor designed for various applications. This motor features a power rating of one and one-half horsepower and operates at one thousand seven hundred twenty-five rpm. It is suitable for three-phase operations with a voltage rating of two hundred thirty to four hundred sixty volts. The unit's rigid base mounting ensures stability during operation.

• Explosion-proof motor application
• Reversible rotation capability
• Efficient operation with 86.5% efficiency rating

Product Highlights

This motor is ideal for environments requiring explosion-proof equipment, making it suitable for industrial settings.

Product Information

Standard Information

• Brand: Leeson
• Part Number: 112786487

Technical Specifications

• Phase: Three Phase
• Voltage Rating: 230/460
• Frame: 56C
• Rotation: Reversible
• Hz: 60
• Mounting: Rigid Base
• Frame Material: Rolled Steel
• Drive End Bearing: 6203
• Efficiency Group: 86.5%
• Open End Bearing: 6203
• Enclosure Designation: Explosion Proof Fan Cooled
• Poles: 4
• Insulation: B
• RPM: 1725 rpm
• Enclosure: EPFC
• HP: 1 1/2
• Motor Application: Explosion Proof
• Full Load Amps: 4.6/2.3
• Weight: 51.0 LB
• EAN or UPC: 691720047156
