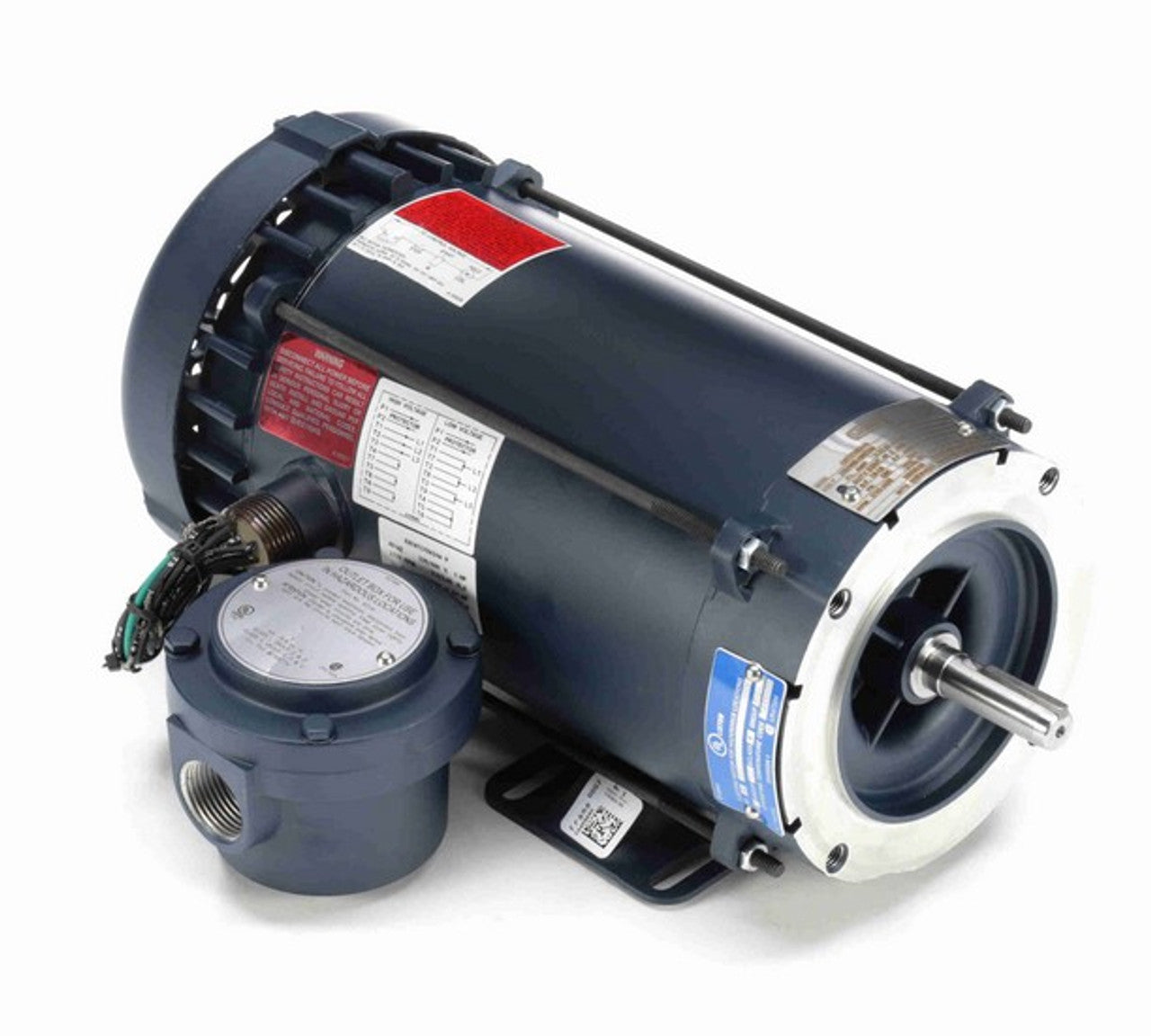

Leeson 119438.00 AC Motor 1 hp 1725 rpm 230/460 Voltage Rating

Product Description

The Leeson 119438.00 AC Motor is designed for various industrial applications. This motor operates at one horsepower and can reach a speed of 1725 rpm. It runs on three-phase power and supports a voltage rating of 230/460 volts. The motor features a rigid base mount and an EPFC enclosure, suitable for explosion-proof requirements.

• Horsepower: 1 hp
• Speed: 1725 rpm
• Phase: Three Phase

Product Highlights

Built for demanding environments and ideal for explosion-proof applications.

Product Information

Standard Information

• Brand: Leeson
• MPN: 119438.00

Technical Specifications

• Voltage Rating: 230/460
• Insulation: B
• Enclosure: EPFC
• Rotation: Reversible
• Frame: 56C
• Hz: 60
• Enclosure Designation: Explosion Proof Fan Cooled
• Mounting: Rigid Base
• Motor Application: Explosion Proof
• Full Load Amps: 3.3/1.65
• RPM: 1725 rpm
• Open End Bearing: 6203
• Phase: Three Phase
• Drive End Bearing: 6205
• Poles: 4
• Efficiency Group: 85.5%
• Frame Material: Rolled Steel
• Weight: 52.0 LB
• EAN or UPC: 691720047132
