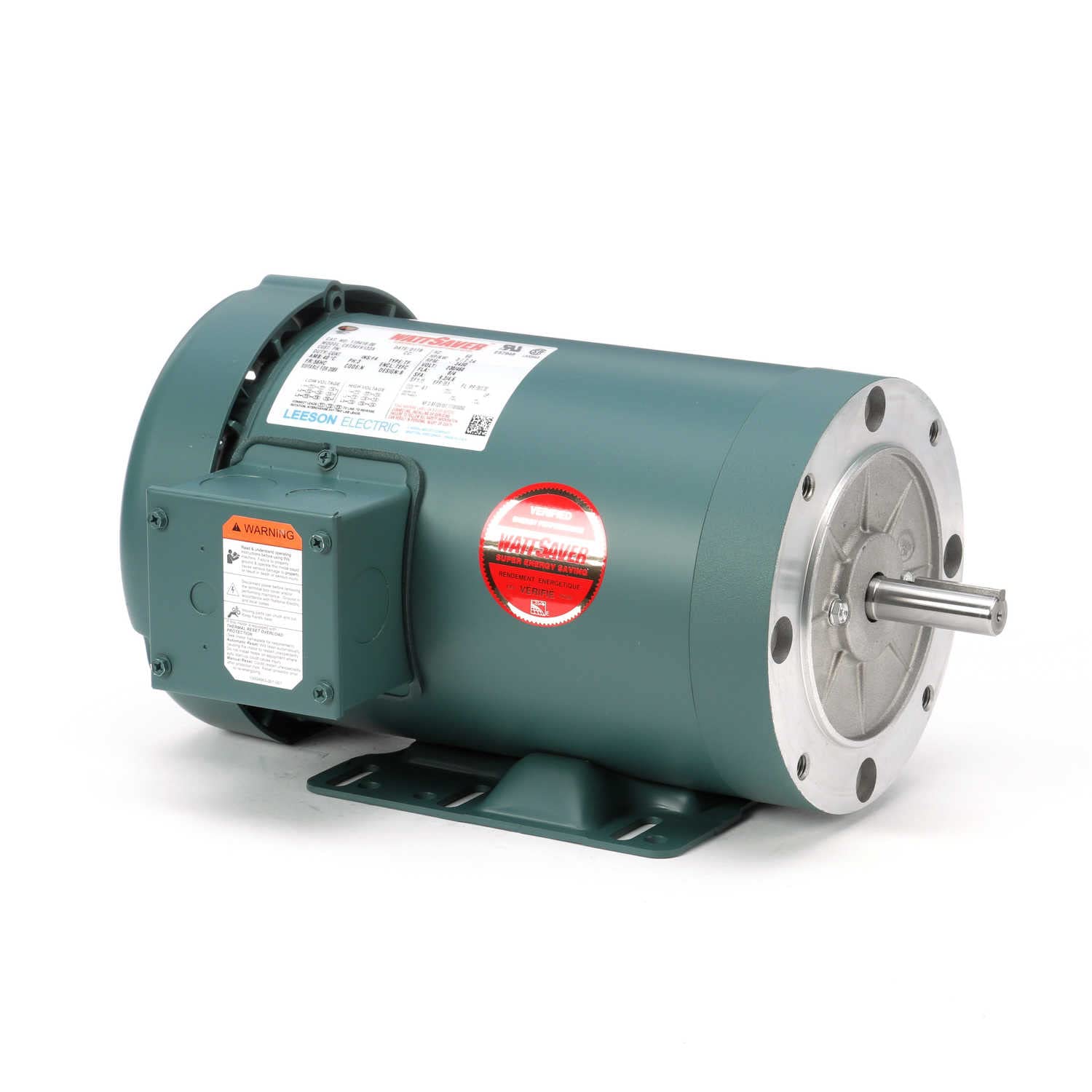

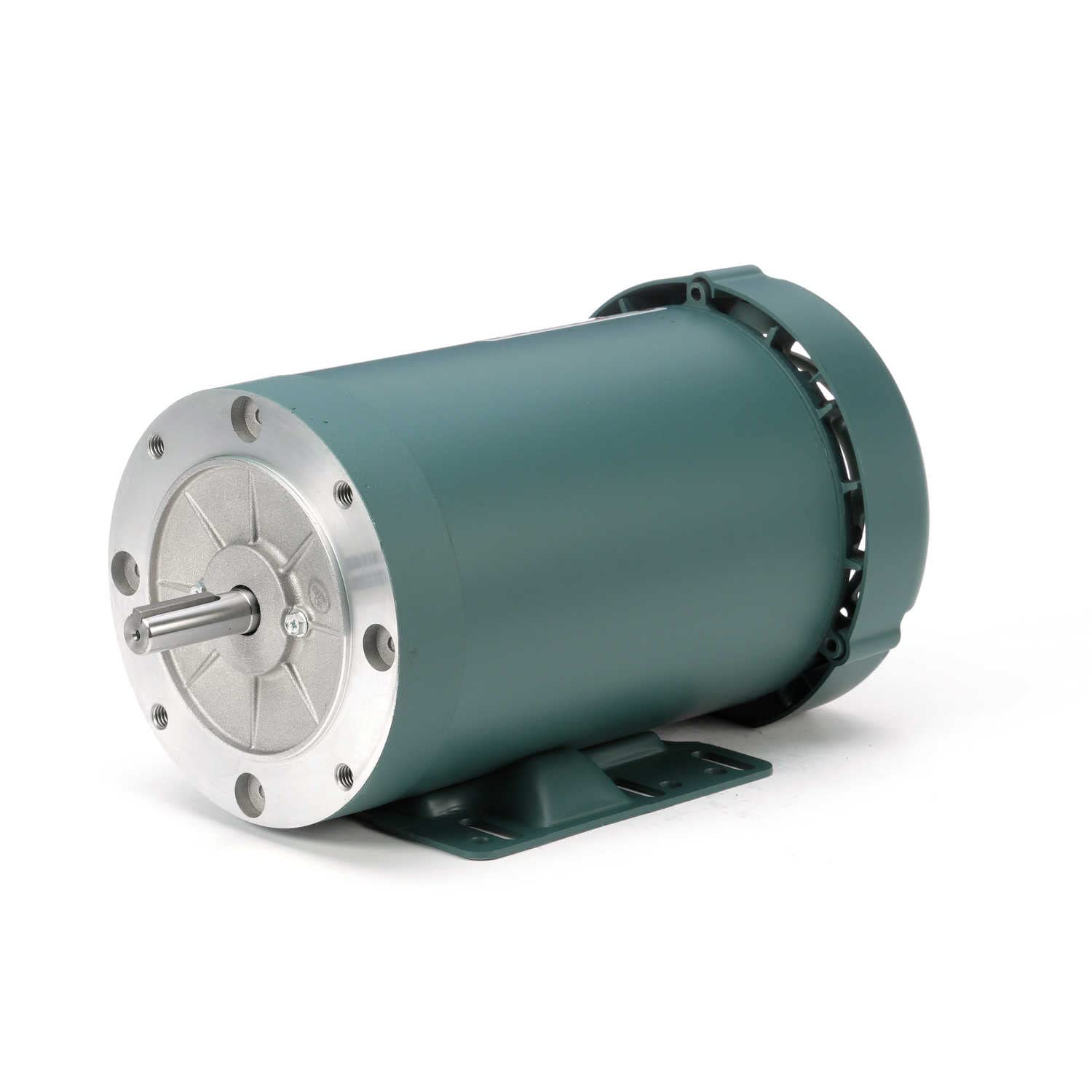

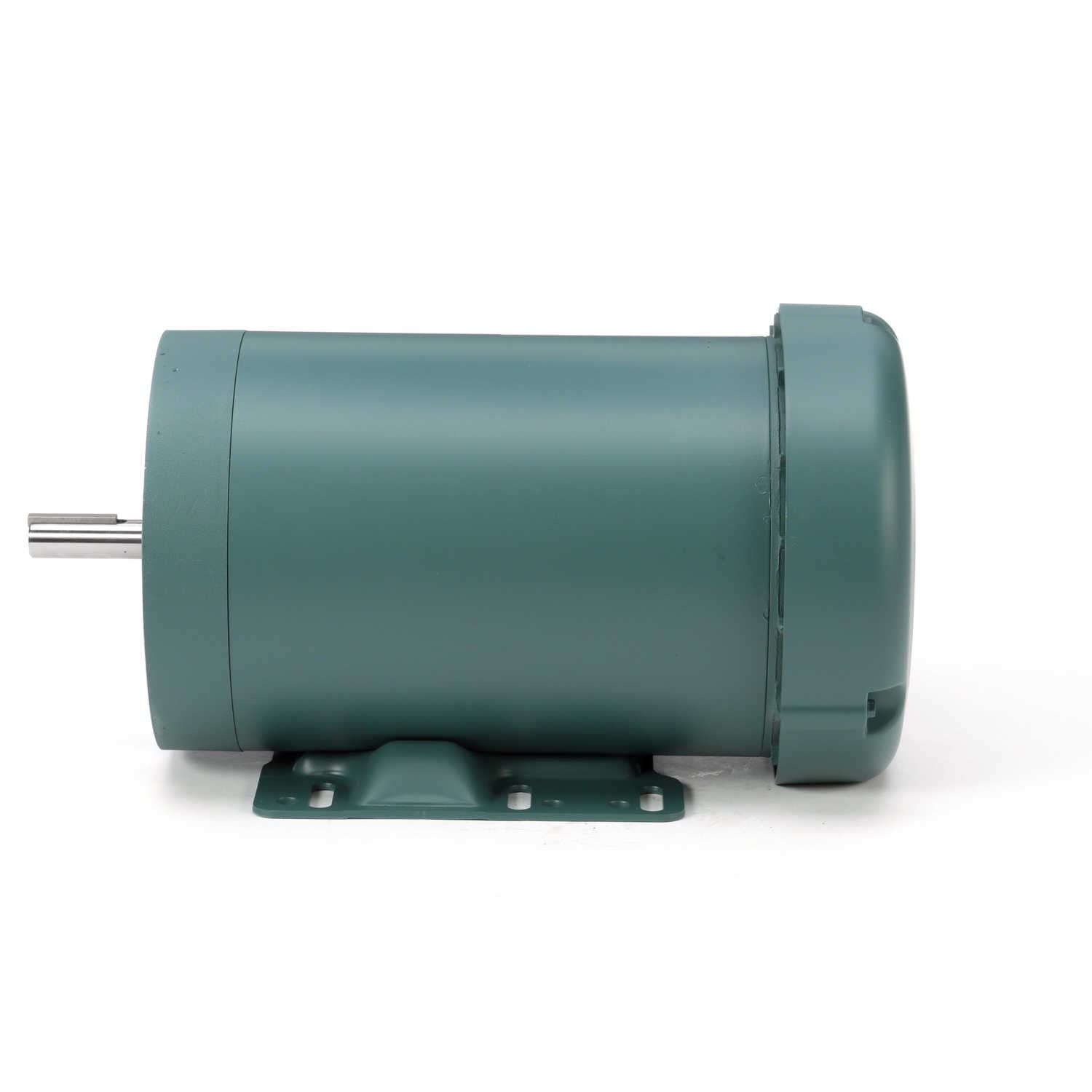

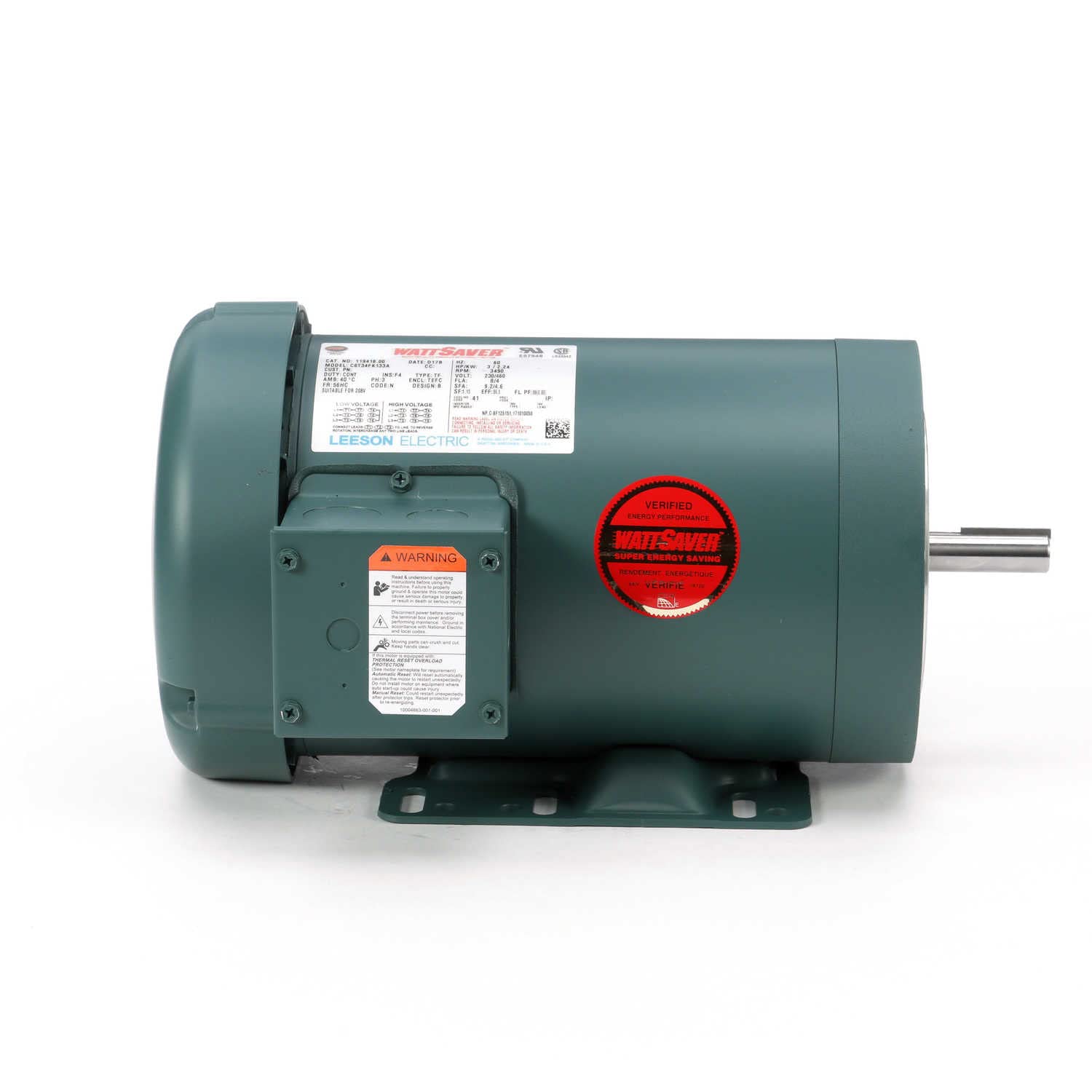

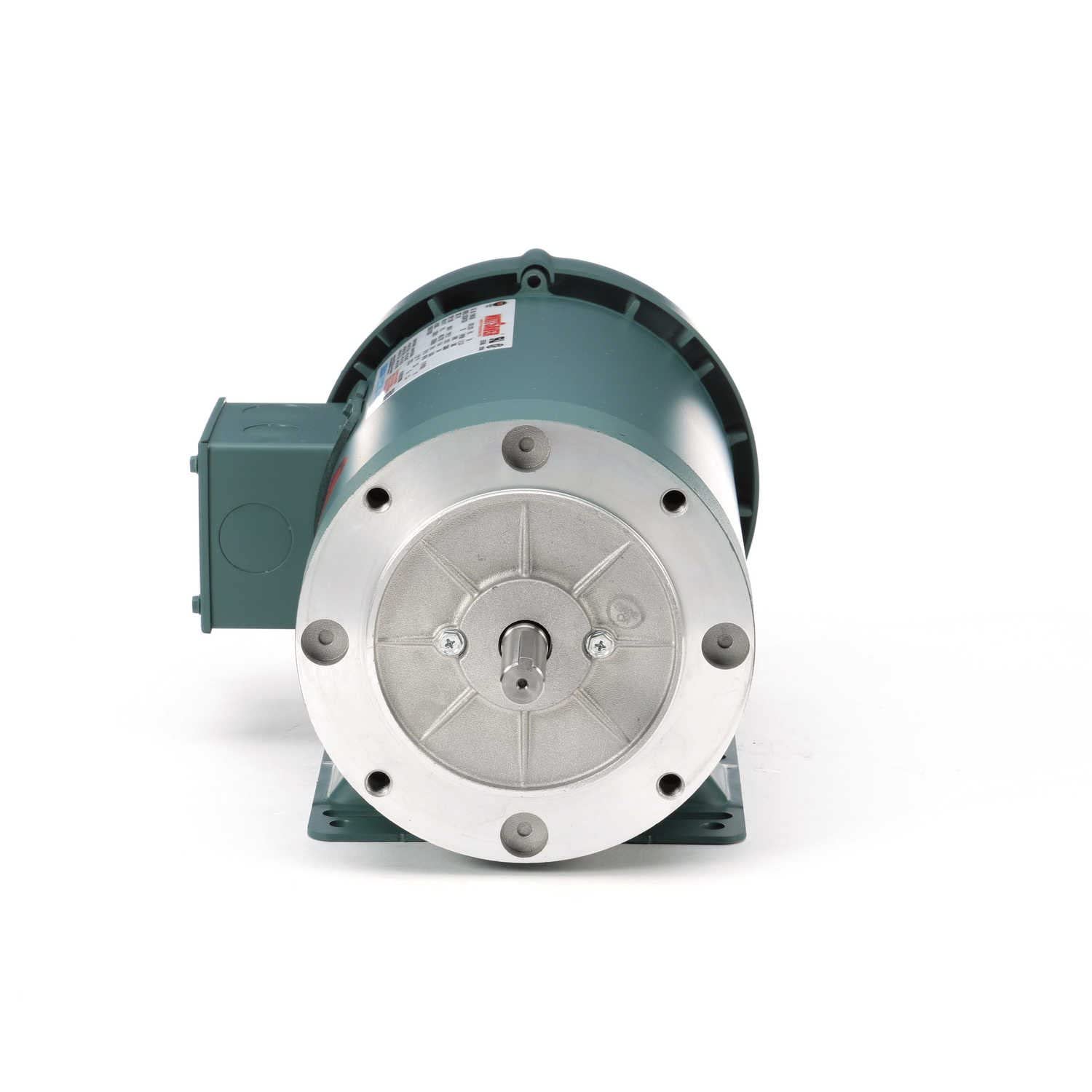

Leeson 119418.00 General Purpose 3 Phase Motor, 3 HP, 3600 RPM, 56HC Frame, TEFC, 230/460V

Product Description

The Leeson 119418.00 is a robust 3-phase, general purpose motor engineered for a multitude of industrial applications. This model features a totally enclosed, fan-cooled design with a rigid base and a 56HC frame size. It operates at 3 horsepower with a high speed of 3600 RPM, suitable for continuous duty.

• High-efficiency motor with an efficiency rating of 86.5%.
• Capable of operating at dual voltages, 230/460V.
• Durable rolled steel construction ensures longevity.

Product Highlights

This motor supports a horizontal mounting position and promotes a clockwise or counterclockwise shaft rotation, making it flexible for various setups. Its ball bearings provide a stable and reliable operation.

Product Information

Standard Information

• Brand: Leeson
• Model Number: 119418.00

Technical Specifications

• Horsepower: 3 hp
• Speed: 3600 RPM
• Voltage: 230/460V AC
• Frame Size: 56HC
• Phase: Three
• Service Factor: 1.15
• Insulation Class: F
• Efficiency: 86.5%
• Shaft Diameter: 5/8 inches
• Shaft Length: 1 7/8 inches
