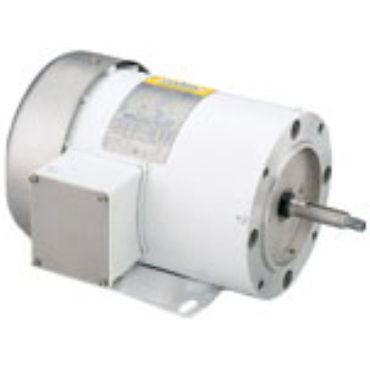

Leeson 116780.00 AC Three Phase Washguard Motors

Product Description

The Leeson 116780.00 AC Three Phase Washguard Motor is designed for extended service in challenging conditions. It is suited for applications such as food processing and chemical environments. The motor is built to endure stringent sanitation processes, including high-pressure cleaning with caustic solutions.

• Durable stainless steel motor body
• Reversible rotation for adaptability
• Designed for high humidity and chemical resistance

Product Highlights

This motor features a robust washdown design, making it ideal for environments that require reliable performance under tough conditions.

Product Information

Standard Information

• Brand: Leeson
• MPN: 116780.00

Technical Specifications

• HP: 1
• RPM: 3450
• Frame Size: 56
• Phase: Three Phase
• Poles: 2
• Voltage Rating: 208-230/460 V
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Service Factor: 1.15
• Weight: 36.0 LB
• Efficiency Group: 77
• Full Load Amps: 3.8-3.6/1.8 A
• Washdown Duty: Yes
• Mounting: Rigid
