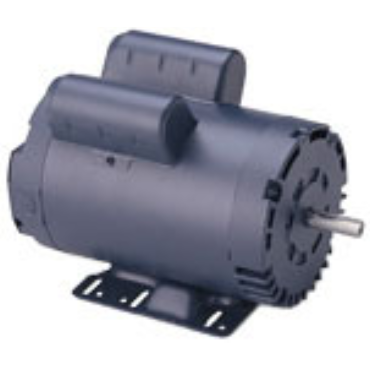

Leeson 116704.00 AC Single Phase ODP Motors 2 HP

SKU: 116704.00
Availability: Out Of Stock
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$819.27
$819.27
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The Leeson 116704.00 is an AC single phase ODP motor designed for various applications including pressure washers. It offers a robust and efficient operation, making it suitable for demanding tasks.

  • Power of two horsepower
  • Operates at one thousand seven hundred forty RPM
  • Drip proof enclosure for added protection

Product Highlights

This motor features durable construction and is thermally protected for continuous duty applications.

Product Information

Standard Information

  • Brand: Leeson
  • Part Number: 101537614

Technical Specifications

  • Frame: 56
  • Service Factor: 1.15
  • Model Number: 116704
  • Drive End Bearing: 6205
  • Open End Bearing: 6203
  • Phase: Single Phase
  • Frequency: 60 Hz
  • Full Load Amps: 19.8/10.8-9.9 A
  • Enclosure Designation: Drip Proof
  • RPM: 1740
  • Motor Application: Pressure Washer
  • Efficiency Group: 79
  • Insulation: F4
  • Poles: 4
  • Dimensions: 12.88 in
  • Voltage Rating: 115/208-230 V
  • Weight: 45.0 LB
  • EAN or UPC: 691720346600

Vendor: REGAL REXNORD
