Leeson 116698.00 AC Three Phase ODP Motors 5 hp

Product Description

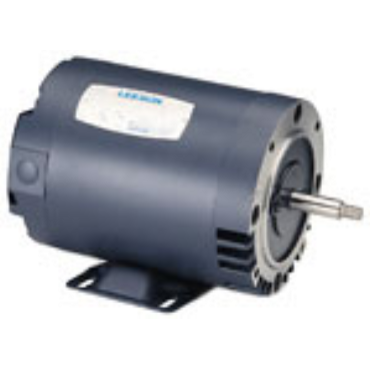

The Leeson 116698.00 is an AC three-phase ODP motor that delivers a power of five horsepower. It operates at a speed of three thousand four hundred ninety rpm and features a round mounting design.

• Three-phase motor design
• High efficiency and robust construction
• Drip-proof enclosure for reliability

Product Highlights

This motor is built to withstand demanding applications, making it suitable for use in jet pumps and other similar tasks.

Product Information

Standard Information

• Model Number: 116698
• Power (HP): 5

Technical Specifications

• Input Phase: Three Phase
• Voltage Rating: 208-230/460 V
• Enclosure: Drip Proof
• Frame Material: Rolled Steel
• Weight: 45.0 LB
• RPM: 3490 rpm
• Full Load Amps: 14.2/7.1 A
• Service Factor: 1.15
• Efficiency Group: 85.5
• C Dimension: 13.88 inches
