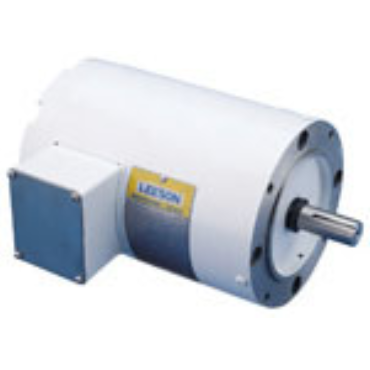

Leeson 116642.00 AC Three Phase Washguard Motors

Product Description

Leeson 116642.00 is an AC three-phase washguard motor designed for durability in harsh environments. It operates at one-third horsepower with a speed of one thousand seven hundred twenty-five RPM. This motor features a round mounting setup and a totally enclosed fan-cooled (TEFC) enclosure to prevent dust and moisture intrusion.

• Designed for tough conditions
• Constructed with high-quality rolled steel
• Features high-temperature insulation

Product Highlights

This motor is suitable for applications that require frequent cleaning and can withstand high humidity levels.

Product Information

Standard Information

• Brand: Leeson
• MPN: 116642.00

Technical Specifications

• Frame: 56
• Insulation: F4
• Drive End Bearing: 6205
• Motor Application: General Purpose
• Inch/Metric: Inch
• Enclosure Designation: Totally Enclosed Fan Cooled
• Full Load Amps: 1.8/.9 A
• Hz: 60 Hz
• Voltage Rating: 208-230/460 V
• Washdown Duty: Yes
• Efficiency Group: 68
• Enclosure: TEFC
• RPM: 1725 rpm
• Mounting: Round
• Poles: 4
• HP: 1/3
• C Dimension: 10.69 in
• Open End Bearing: 6203
• Model No.: 116642
• Service Factor: 1.15
• Frame Material: Rolled Steel
• Rotation: Reversible
• Phase: Three Phase
• Input Phase: Three Phase
• Weight: 19.0 LB
• EAN or UPC: 691720343463
