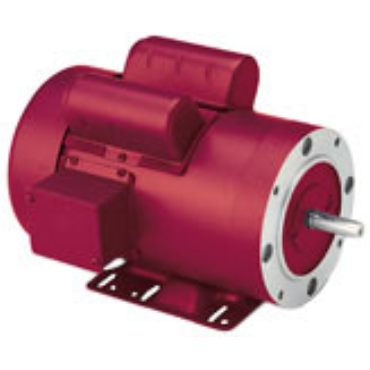

Leeson 116489.00 AC Single Phase Agricultural Duty Motors 1 1/2 hp

Product Description

The Leeson 116489.00 is an AC Single Phase Agricultural Duty Motor suitable for various agricultural applications. This motor is designed for seamless integration into poultry feed auger drive systems, ensuring effective performance in demanding environments.

• 1 1/2 horsepower output
• Rated at 1,725 RPM
• TEFC enclosure for robust protection

Product Highlights

The Leeson 116489.00 motor features a rigid mounting design, making it reliable for heavy-duty applications. It operates efficiently at 60 Hz and provides a service factor of 1.15, which ensures durability and performance under load.

Product Information

Standard Information

• Brand: Leeson
• MPN: 116489.00

Technical Specifications

• HP: 1 1/2
• RPM: 1725
• Frame: 56
• Phase: Single Phase
• Poles: 4
• Enclosure: TEFC
• Insulation: F4
• Weight: 50.0 LB
• Voltage Rating: 115/208-230 V
• Service Factor: 1.15
• Mounting: Rigid
• Efficiency Group: 79
• Full Load Amps: 19/9.8-9.5 A
