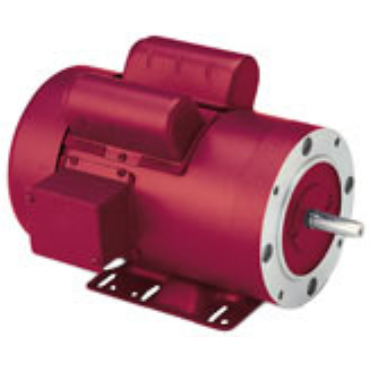

Leeson 116487.00 AC Single Phase Agricultural Duty Motors 3/4 hp

Product Description

The Leeson 116487.00 is an AC single phase agricultural duty motor designed for various agricultural applications. This motor features a sturdy rolled steel frame and offers a power output of three-quarters of a horsepower at 1,725 revolutions per minute.

• Suitable for rigid mounting.
• Includes TEFC enclosure for protection.
• Operates at 60 Hz frequency.

Product Highlights

This motor is ideal for poultry feed auger drive systems and combines reliability with efficient performance.

Product Information

Standard Information

• Brand: Leeson
• MPN: 116487.00

Technical Specifications

• HP: 3/4
• Frequency: 60 Hz
• RPM: 1725 rpm
• Frame Size: 56
• Phase Type: Single Phase
• Poles: 4
• Weight: 20.0 LB
• Rotation: Selective CCW
• Mounting Type: Rigid
• Input Voltage Rating: 115/208-230 V
• Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
• Service Factor: 1.15
• Full Load Amps: 11.4/5.7 A
• Frame Material: Rolled Steel
• Insulation Class: B4
• Efficiency Group: 70
