Leeson 116190.00 ac motor 1/2 hp 1725 rpm 208-230/460v 56c frame epfc rigid base three phase

Product Description

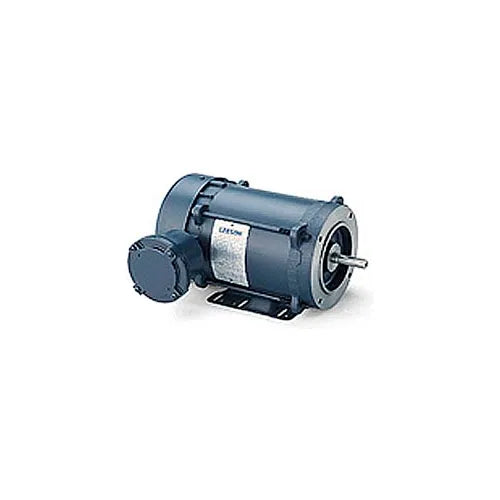

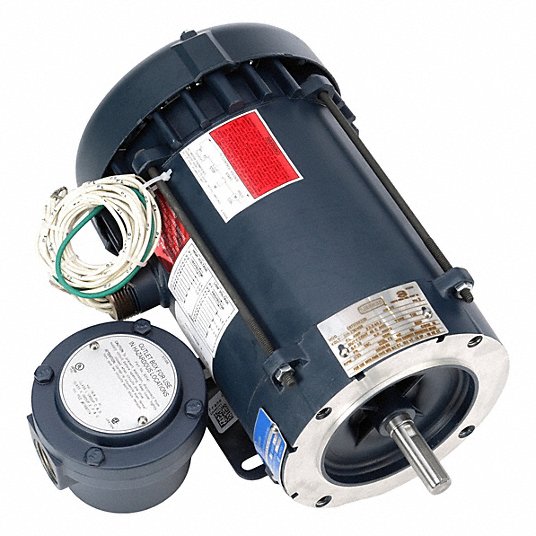

The LEESON 116190.00 is an AC motor designed for explosion-proof applications, featuring a 1/2 hp output and operating at 1725 rpm. This three-phase motor is rated for 208-230/460 voltage and comes with a 56C frame and an EPFC (Explosion Proof Fan Cooled) enclosure. It is suitable for hazardous locations requiring a rigid base mount, ensuring safe and reliable operation in demanding industrial environments.

• Explosion Proof Motor Application with EPFC Enclosure for hazardous environments.
• Three-phase operation with 208-230/460V voltage rating and 1/2 hp output.
• Rigid base mount and 56C frame for stable and secure installation.

Product Highlights

Designed for hazardous locations, this explosion-proof motor offers reliable performance with UL and CSA certifications.

Product Information

Standard Information

• Brand: LEESON
• Manufacturer Part Number: 116190.00
• Country of Origin: Mexico

Technical Specifications

• Input Voltage: 208-230/460V
• Insulation Class: F
• Frequency: 60 Hz
• Efficiency: 68%
• Frame Material: Rolled Steel
• Enclosure Type: Explosion Proof Fan Cooled
• Phase: 3
• Opposite Drive End Bearing Size: 6203
• Mounting Type: Rigid Base; C-Face
• Motor Application: Explosion Proof
• Poles: 4
• Frame Size: 56C
• Rotation: Reversible
• Service Factor: 1
• Speed: 1725 rpm
• Enclosure: EPFC
• Full Load Amps: 2.3-2.4/1.2 A
• Drive End Bearing Size: 6203
• Duty Cycle: Continuous
• Motor Design: Squirrel Cage Inverter Rated
• Output Horsepower: 1/2 HP
• Certifications: UL Listed; CSA Certified; CE: No; NEC 500; NFPA 497M
• Thermal Protection: Thermostat
• Ambient Temperature: 40 °C
• Output Kilowatt: 0.37 kW
• IP Code: IP54
• Power Factor: 61.1
• Design Code: B
• KVA Code: M
• Number of Speeds: 1
• Hazardous Location Class: Class I, Groups C & D; Class II, Groups F & G; Division 1
• Starting Method: Line Or Inverter
• Motor Orientation: Horizontal
• Drive End Bearing Type: Ball
• Opposite Drive End Bearing Type: Ball
• Shaft Type: NEMA 56
• Overall Length: 13.44 in
• Frame Length: 6.31 in
• Shaft Diameter: 0.625 in
• Shaft Extension: 1.88 in
• Conduit Box Position: F1
• Variable Torque Speed Range: 10:1
• Lead Length: 18 in
• Length Less Shaft: 11-9/16 in
• Shaft Design: Keyed
• Temperature Code: T3B
• Torque Rating: 1.5 ft-lb
• Double Drilled: No
• Removable Feet: No
• Grease Type: Polyrex EM
• Greaseable: Yes
