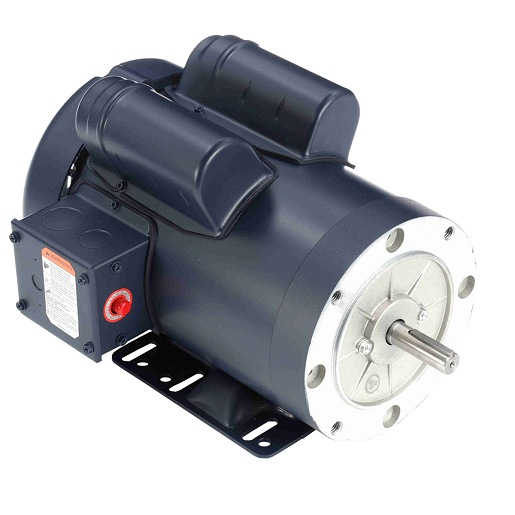

Leeson 114995.00 AC Motor 2 hp 3450 rpm Single Phase 115/230

Product Description

Leeson 114995.00 is an AC motor with a two horsepower rating. It operates at a speed of three thousand four hundred fifty RPM and is suitable for a variety of general purpose motor applications. This single-phase motor can run on both one hundred fifteen and two hundred thirty volts. The rigid base mount ensures stability during operation. It features a Totally Enclosed Fan Cooled (TEFC) design, ideal for industrial environments.

• Two horsepower
• Single-phase operation
• TEFC enclosure for enhanced durability

Product Highlights

This AC motor is designed for effective and reliable performance in various applications. Its robust construction and efficient operation make it a go-to choice for HVAC and other mechanical tasks.

Product Information

Standard Information

• Brand: Leeson
• MPN: 114995.00
• Frame: 56HC
• Voltage Rating: 115/230
• Phase: Single Phase

Technical Specifications

• Mounting: Rigid Base
• Service Factor: 1.15
• Efficiency Group: 78.5%
• Full Load Amps: 17/8.5
• Weight: 45.0 LB
• Drive End Bearing: 6203
• Open End Bearing: 6203
• Insulation: F
• RPM: 3450 rpm
