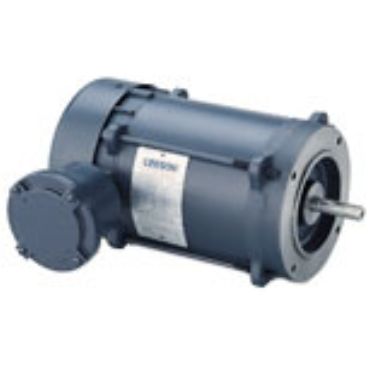

Leeson 114425.00 AC Single Phase Explosion Proof Motors

Product Description

The Leeson 114425.00 AC Single Phase Explosion Proof Motor is designed for various applications requiring reliable performance in hazardous environments. This two-horsepower motor operates at three thousand four hundred fifty RPM and features a round mounting configuration.

• Certified for explosion-proof operations
• Automatic overload protection
• Durable rolled steel frame construction

Product Highlights

This motor meets UL and CSA safety standards and is equipped with an explosion-rated conduit box for secure operation. It features internal mounted capacitors for enhanced efficiency and double shielded ball bearings for longevity.

Product Information

Standard Information

• Brand: Leeson
• Part Number: 114425.00

Technical Specifications

• Mounting: Round
• Frame Material: Rolled Steel
• Service Factor: 1
• Poles: 2
• Phase: Single Phase
• Efficiency Group: 75.5
• Full Load Amps: 20/10.8-10
• Insulation: B3
• Drive End Bearing: 6203
• RPM: 3450
• Frame: 56
• HP: 2
• C Dimension: 14.94
• Open End Bearing: 6203
• Inch/Metric: Inch
• Model No.: 114425
• Rotation: Selective CCW
• Hz: 60
• Enclosure: EPFC
• Enclosure Designation: Explosion Proof Fan Cooled
• Voltage Rating: 115/208-230 V
• Motor Application: Explosion Proof
• Weight: 57.0 LB
• EAN or UPC: 691720013953
