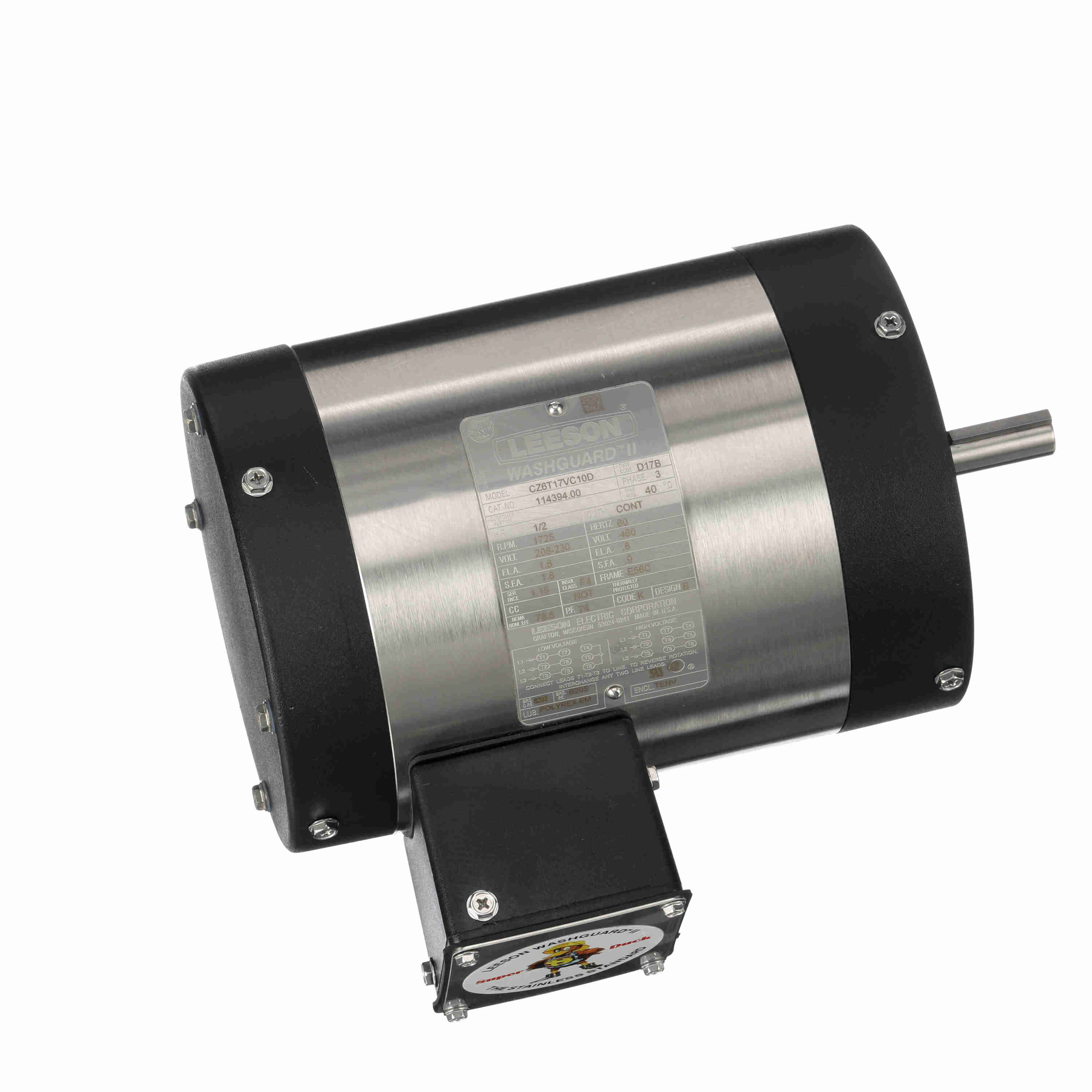

Leeson 114394.00 Washguard� ll General Purpose Motor, 0.50 HP, 3 Ph, 60 Hz, 208-230/460 V, 1800 RPM, 56C Frame

Leeson 114394 Washguard® ll General Purpose Motor, 0.50 HP, 3 Ph, 60 Hz, 208-230/460 V, 1800 RPM, 56C Frame

KEY FEATURES
Full stainless steel exterior promotes resistance to water and chemical corrosion.
Double sealed bearings extend the lifetime of the motor by combating early signs of bearing failure.
Stainless steel output shaft seals protect against external contaminants.
Insulation systems deliver superior protection against voltage spikes.

General Specifications
• Packaged Length: 19.5 IN
• Packaged Height: 10.88 IN
• Weight: 33.00 LB
• Packaged Width: 10.44 IN
• Country of Origin: United States of America

Nameplate Specifications
• Output HP: 0.50 Hp
• Frequency: 60 Hz
• Current: 1.6/0.80 A
• Service Factor: 1.15
• Efficiency: 78.5 %
• Duty: Continuous
• Design Code: B
• Frame: 56C
• Thermal Protection: No Protection
• Drive End Bearing Size: 6205
• UL: Recognized
• CE: N
• Number of Speeds: 1
• Output KW: 0.37 kW
• Voltage: 208-230/460 V
• Speed: 1725 rpm
• Phase: 3
• Power Factor: 74
• Insulation Class: F
• KVA Code: K
• Enclosure: Totally Enclosed Non Ventilated
• Ambient Temperature: 40 °C
• Opp Drive End Bearing Size: 6203
• CSA: Y
• IP Code: 55

Technical Specifications
• Electrical Type: Squirrel Cage Induction Run
• Poles: 4
• Resistance Main: 8.17 Ohms
• Motor Orientation: Horizontal
• Opp Drive End Bearing: Ball
• Shaft Type: NEMA 56
• Frame Length: 6.00 in
• Shaft Extension: 1.88 in
• Starting Method: Across The Line
• Rotation: Reversible
• Mounting: Round
• Drive End Bearing: Ball
• Frame Material: Stainless Steel
• Overall Length: 11.06 in
• Shaft Diameter: 0.625 in
• Assembly/Box Mounting: F1 ONLY
