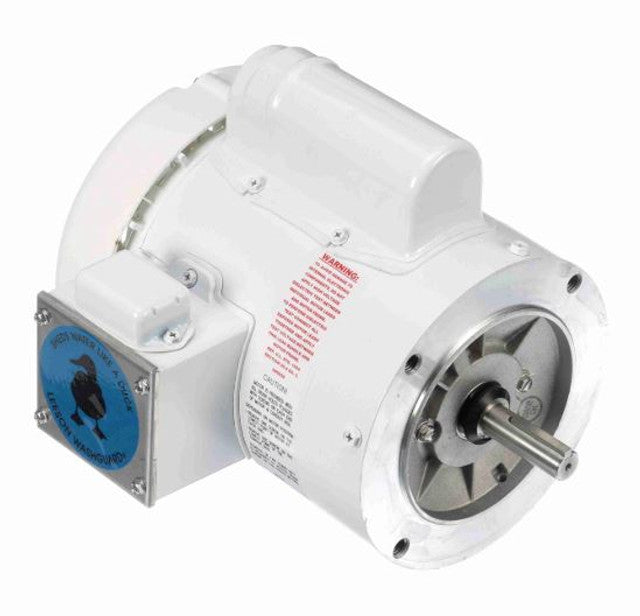

Leeson 114313.00 White Duck™ General Purpose Motor, 0.50 HP, 1 Ph, 60 Hz, 115/208-230 V, 1800 RPM, 56C Frame

KEY FEATURES
USDA-approved white epoxy finish ensures resistance and protection against caustic cleaning solutions.
Sealed bearings shut out contaminants that lead to bearing failure.
Stainless steel output shaft seals protect against external contaminants.
Cast, white epoxy conduit boxes house electrical wiring.

General Specifications
Packaged Length: 14.44 IN
Packaged Height: 10.88 IN
Packaged Width: 10.44 IN
Weight: 24.50 LB
Country of Origin: United States of America

Nameplate Specifications
• Output HP: 0.50 Hp
• Frequency: 60 Hz
• Current: 8.8/4.4 A
• Service Factor: 1.15
• Efficiency: 66 %
• Duty: Continuous
• Design Code: N
• Frame: 56C
• Thermal Protection: No Protection
• Drive End Bearing Size: 6205
• UL: Recognized
• CE: N
• Number of Speeds: 1
• Output KW: 0.37 kW
• Voltage: 115/208-230 V
• Speed: 1725 rpm
• Phase: 1
• Power Factor: 58
• Insulation Class: F
• KVA Code: L
• Enclosure: Totally Enclosed Fan Cooled
• Ambient Temperature: 40 °C
• Opp Drive End Bearing Size: 6203
• CSA: Y
• IP Code: 55

Technical Specifications
• Electrical Type: Capacitor Start Induction Run
• Poles: 4
• Resistance Main: 3.4 Ohms
• Motor Orientation: Horizontal
• Opp Drive End Bearing: Ball
• Shaft Type: NEMA 56
• Frame Length: 5.00 in
• Shaft Extension: 1.88 in
• Starting Method: Across The Line
• Rotation: Selective Counterclockwise
• Mounting: Round
• Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Overall Length: 10.87 in
• Shaft Diameter: 0.625 in
• Assembly/Box Mounting: F1 ONLY
