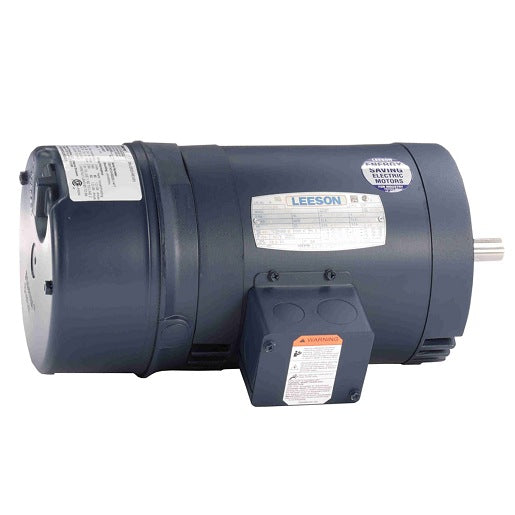

Leeson 114166.00 AC Motor 1 hp 1725 rpm Three Phase 208-230/460

Product Description

The Leeson 114166.00 is a three-phase AC motor designed for reliability and efficiency in various applications. It has a power rating of one horsepower and operates at a speed of one thousand seven hundred twenty-five revolutions per minute. This motor is suitable for brake motor applications, making it ideal for use in industrial settings.

• Power rating: 1 hp
• Speed: 1725 rpm
• Voltage options: 208-230/460

Product Highlights

This motor features a drip-proof enclosure to protect internal components from moisture. It is designed to be reversible, allowing for flexible integration into different systems.

Product Information

Standard Information

• Brand: Leeson
• Part Number: 104566635

Technical Specifications

• Efficiency Group: 78.5%
• Insulation: B
• Full Load Amps: 4.2/2.1
• Phase: Three Phase
• Frame Size: 56C
• Service Factor: 1.15
• Frequency: 60 Hz
• Poles: 4
• Enclosure Designation: Drip Proof (DP)
• RPM: 1725
• Voltage Rating: 208-230/460
• Frame Material: Rolled Steel
• Mounting: Round
• Rotation: Reversible
• Motor Application: Brake Motor
• Weight: 37.0 lb
• EAN or UPC: 691720013410
