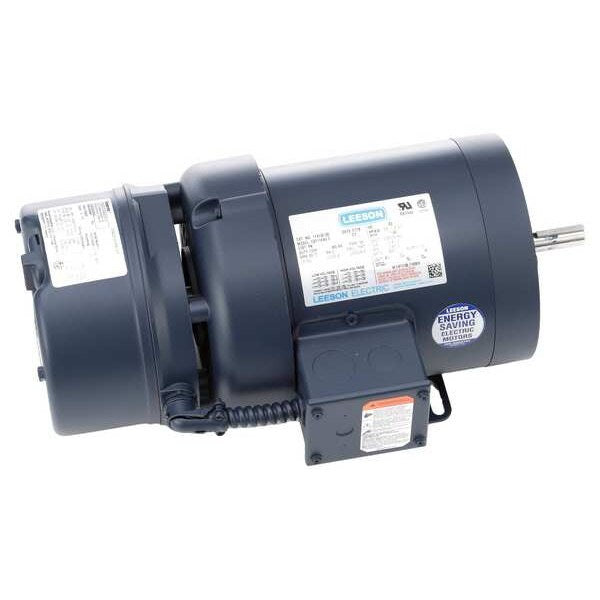

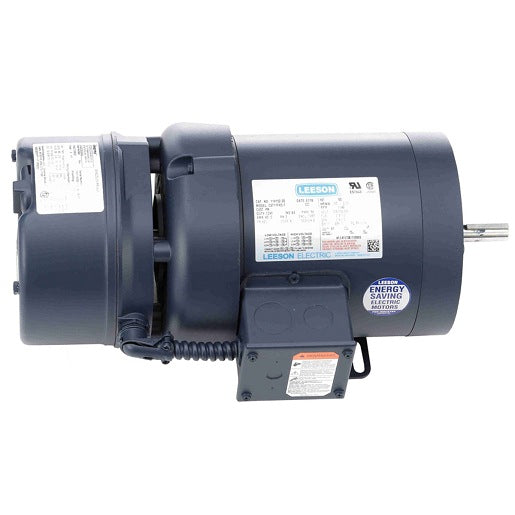

Leeson 114152.00 AC Motor 1/2 HP 1140 RPM Three Phase 208-230/460

Product Description

Leeson 114152.00 is a reliable AC motor designed for brake motor applications. It is a half horsepower motor running at 1140 RPM with three-phase power. The motor operates at a voltage rating of 208-230/460 and features a rigid base mount for easy installation.

• Power: 1/2 HP
• Speed: 1140 RPM
• Voltage: 208-230/460

Product Highlights

This motor is suitable for applications requiring consistent performance and durability.

Product Information

Standard Information

• Brand: Leeson
• MPN: 114152.00

Technical Specifications

• HP: 1/2
• RPM: 1140
• Phase: Three Phase
• Voltage Rating: 208-230/460
• Mounting: Rigid Base
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Weight: 37.0 LB
• Insulation: Class B
• Efficiency Group: 70%
• Poles: 6
• Drive End Bearing: 6203
• Open End Bearing: 6203
• Full Load Amps: 2.4/1.2
