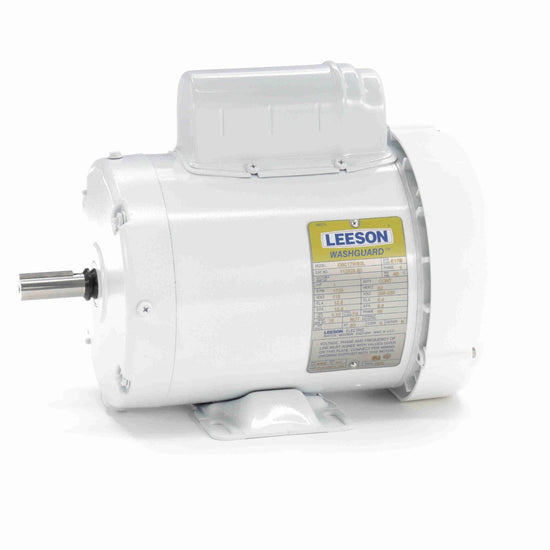

Leeson 112626.00 AC Motor 1 hp 1725 rpm 60 Hz 115/208-230 Voltage Rating

Product Description

The Leeson 112626.00 is an AC motor designed for general-purpose applications. This motor has a one-horsepower rating and operates at a speed of one thousand seven hundred twenty-five revolutions per minute. It is suitable for single-phase power at sixty hertz. The motor supports voltage ratings of one hundred fifteen to two hundred eight/230 volts. It features a rigid base mount and a totally enclosed fan-cooled (TEFC) design for durability and efficiency.

• 1 horsepower AC motor
• 1725 RPM with rigid base mount
• Operational voltage of 115/208-230 volts

Product Highlights

This AC motor is suitable for a variety of general-purpose tasks in HVAC, plumbing, and electrical applications.

Product Information

Standard Information

• Brand: Leeson
• Part Number: 104564623

Technical Specifications

• HP: 1
• RPM: 1725
• Frame: 56
• Phase: Single Phase
• Poles: 4
• Service Factor: 1.15
• Enclosure: TEFC
• Weight: 36.0 LB
• Voltage Rating: 115/208-230
