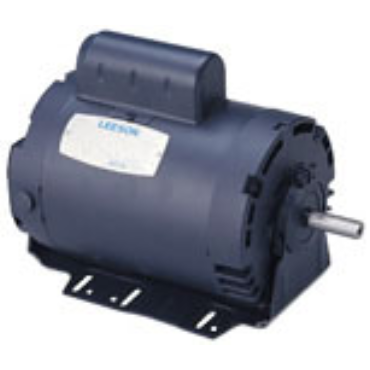

Leeson 111955.00 AC Single Phase ODP Motors 1 hp

Product Description

Leeson 111955.00 is an AC single phase ODP motor designed for HVAC applications. This motor delivers reliable performance with a rated horsepower of one and operates at speeds of one thousand seven hundred twenty-five revolutions per minute.

• Includes resilient base for mounting
• Features drip-proof enclosure
• Constructed with durable rolled steel material

Product Highlights

Engineered for continuous duty, this motor is thermally protected and features double shielded ball bearings for enhanced longevity.

Product Information

Standard Information

• Brand: Leeson
• MPN: 111955.00

Technical Specifications

• Horsepower: 1
• RPM: 1725
• Enclosure: Drip Proof
• Phase: Single Phase
• Voltage Rating: 115 V
• Full Load Amps: 13.2
• Efficiency Group: 69%
• Frame Size: 56
• Insulation Class: F4
• Weight: 44.0 LB
• Drive End Bearing: 6203
• Open End Bearing: 6203
• Rotation: Selective CCW
• C Dimension: 12.81 inches
• Mounting Type: Resilient Base
