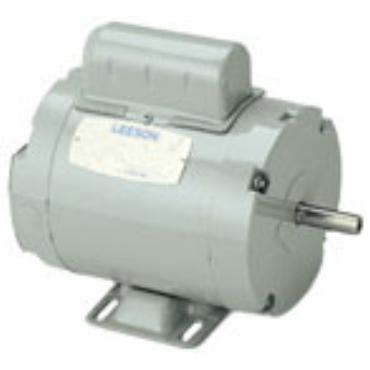

Leeson 111949.00 AC Single Phase Agricultural Duty Motors

Product Description

The Leeson 111949.00 is an AC Single Phase Agricultural Duty Motor designed for a variety of agricultural applications. This motor operates at a power of 1.5 horsepower and reaches a speed of 3,450 RPM. It features a rigid mounting design and a TENV enclosure, ensuring durability in demanding environments.

• 1.5 horsepower
• 3,450 RPM
• TENV enclosure for protection

Product Highlights

This motor provides efficient performance for agricultural duty applications and features a rigid frame for reliable support.

Product Information

Standard Information

• Brand: Leeson
• Part Number: 111949.00

Technical Specifications

• Voltage Rating: 115/208-230 V
• Enclosure Type: TENV
• Insulation Class: B4
• Efficiency Group: 72
• Frame Size: 56
• Weight: 35.0 LB
• Full Load Amps: 17/9-8.5
• Service Factor: 1
• Mounting Type: Rigid
• Motor Application: Agricultural
• Drive End Bearing: 6203
• Open End Bearing: 6203
• RPM: 3450
• Rotation: Selective CCW
• C Dimension: 11.4 in
