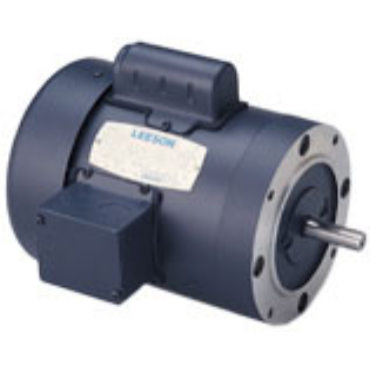

Leeson 110415.00 AC Single Phase Totally Enclosed Motors

Product Description

The Leeson 110415.00 is an efficient AC single phase motor designed for general purposes. With a TEFC enclosure, this motor operates quietly and reliably. It is suitable for various applications where compact and powerful motors are needed.

• 1 horsepower, 3,450 RPM
• TEFC enclosure for durability
• Round mounting for versatile installation

Product Highlights

This motor features high-efficiency copper windings and a dynamically balanced rotor for minimal vibration.

Product Information

Standard Information

• Brand: Leeson
• MPN: 110415.00

Technical Specifications

• Horsepower: 1 HP
• Voltage Rating: 115/208-230 V
• Full Load Amps: 13.6/7-6.8 A
• RPM: 3450
• Frame Size: 56
• Mounting: Round
• Insulation Class: B4
• Service Factor: 1.15
• Frame Material: Rolled Steel
• Enclosure Type: TEFC
• Efficiency Group: 70
• C Dimension: 11.81 inches
• Poles: 2
• Motor Application: General Purpose
• Drive End Bearing: 6203
• Open End Bearing: 6203
• Rotation: Selective CCW
• Phase: Single Phase
• Enclosure Designation: Totally Enclosed Fan Cooled
• EAN or UPC: 691720008744
