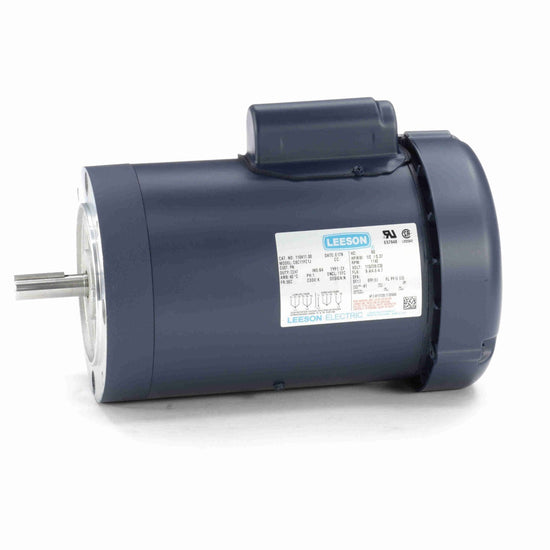

Leeson 110411.00 General Purpose Motor 1/2HP 1140RPM 56 TEFC 115/208-230V 1PH 60HZ CONT 40C 1.0SF C FACE C6C11FC1J

Product Description

Leeson 110411.00 is a general purpose AC motor that provides reliable performance for various applications. This motor operates at one-half horsepower with a speed of one thousand one hundred forty RPM. It features a totally enclosed fan cooled (TEFC) design, making it suitable for tougher environments.

• 1/2 horsepower motor
• Speed: 1140 RPM
• Voltage: 115/208-230V

Product Highlights

This Leeson motor is ideal for HVAC applications, pumps, and general machinery. Its single-phase design is efficient for everyday use, offering flexibility in different setups.

Product Information

Standard Information

• Brand: Leeson
• MPN: 110411.00

Technical Specifications

• Rotation: Selective CCW
• RPM: 1140 rpm
• Voltage Rating: 115/208-230
• Insulation: B
• Phase: Single Phase
• Enclosure: TEFC
• Poles: 6
• Hz: 60
• Frame: 56C
• Weight: 40.0 LB
• Motor Application: General Purpose
• Mounting: Round
• Efficiency Group: 68 %
• Full Load Amps: 9.4/4.6-4.7
