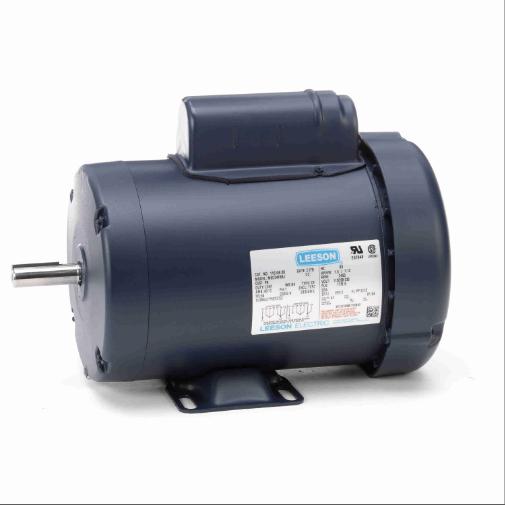

Leeson 110109.00 Motors-1.5HP 115/208-230V 3450RPM TEFC Rigid Mount Replacement MPN

Product Description

Leeson 110109.00 is a 1.5 horsepower motor designed for heavy-duty applications. This motor operates at 3450 RPM and comes with a totally enclosed fan-cooled (TEFC) enclosure. It supports voltage options of 115/208-230 volts and is suitable for single-phase operations at 60 Hz. The motor features a rigid mount system for easy installation and reliability.

• 1.5 HP with rugged construction for durability
• TEFC design prevents dust and moisture ingress
• Manual thermal protection ensures safety during operation

Product Highlights

This general-purpose motor provides efficient performance in various applications, particularly where exposure to contaminants may be a concern.

Product Information

Standard Information

• Brand: Leeson
• Part Number: 110109.00

Technical Specifications

• Horsepower: 1.5 HP
• RPM: 3450
• Voltage: 115/208-230 V
• Frame Size: 56
• Phase: 1
• Enclosure Type: TEFC
• Service Factor: 1.0 SF
• Full Load Amps: 17/8.5
