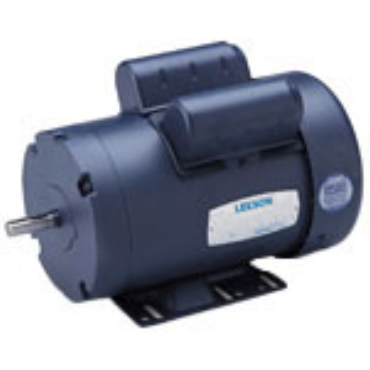

Leeson 110108.00 AC Single Phase TEFC Motors 3/4 HP

Product Description

Leeson 110108.00 is an AC single phase Totally Enclosed Fan Cooled (TEFC) motor designed for general purpose applications. This motor provides reliable performance at three-fourths horsepower with a speed of 3,450 revolutions per minute. The rugged rolled steel construction supports rigid mounting, making it suitable for various industrial tasks.

• Three-fourths horsepower
• TEFC enclosure for durability
• Meets NEMA service factors

Product Highlights

This motor is ideal for HVAC, pumping, and fan applications. It features thermally protected ratings and double shielded ball bearings.

Product Information

Standard Information

• Brand: Leeson
• Model No.: 110108

Technical Specifications

• HP: 3/4
• RPM: 3450
• Frame: 56
• Phase: Single Phase
• Enclosure: TEFC
• Voltage Rating: 115/208-230 V
• Full Load Amps: 10.8/5.8-5.4 A
• Weight: 29.0 LB
