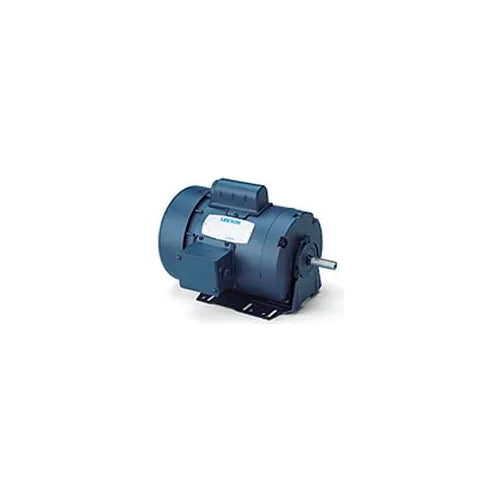

Leeson 110026.00 Motors-3/4HP 115/208-230V 1725RPM TEFC Resilient Mount

Product Description

Leeson has designed the 110026.00 motor for general purpose applications. This motor has three-fourths horsepower and operates at 1725 RPM. It features a totally enclosed fan-cooled (TEFC) design that protects the internal components while delivering reliable performance. The motor runs on 115/208-230 volts and comes in a resilient mount for reduced vibration during operation.

• Capacitor start-inductor run mechanism
• Continuous duty with a service factor of 1.15
• Automatic thermal protection for added safety

Product Highlights

This motor is suitable for environments where exposure to dirt or dampness is a concern, making it ideal for HVAC systems and other industrial applications.

Product Information

Standard Information

• Brand: Leeson
• MPN: 110026.00

Technical Specifications

• Horsepower: 3/4 HP
• Rated RPM: 1725
• Voltage: 115/208-230 V
• Phase: 1
• Hertz: 60 Hz
• Frame: 56
• Full Load Amps: 10.8/5.4 FLA
• Enclosure Type: Totally Enclosed
• Mounting Location: Resilient Base
• Ambient Temperature: 40 °C
