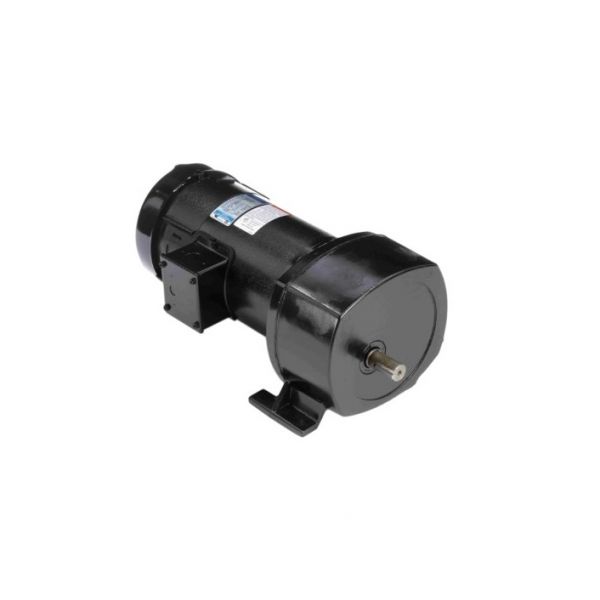

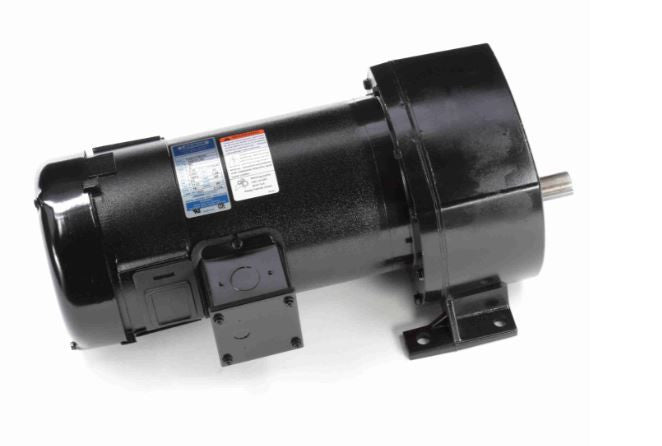

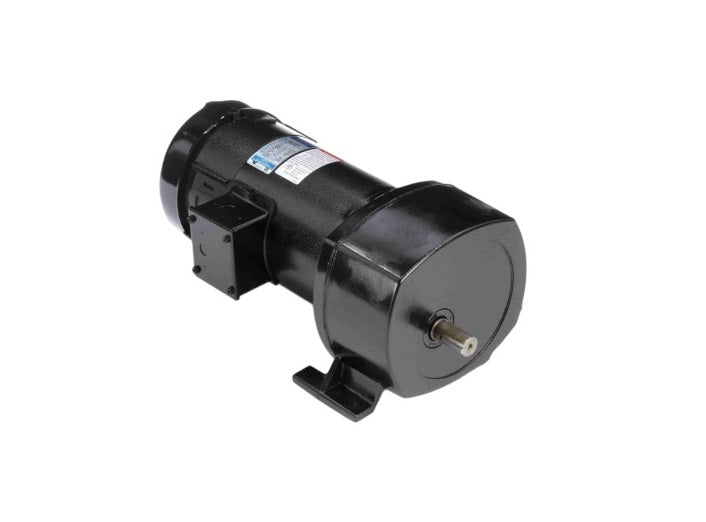

Leeson 108707 1/2 hp 18 rpm motor

Product Description

The LEESON 108707 is a 1/2 HP motor operating at 18 RPM and 90VDC. This P1100 Series parallel shaft gearmotor is designed for continuous duty and is performance matched for service over a 60:1 speed range. It features a 3/4" keyed output shaft and a rugged die-cast aluminum gear housing.

• 3/4" Keyed output shaft
• Rugged die cast aluminum gear housing for maximum gear and bearing support
• Gears designed and rated to AGMA class 9 standards

Product Highlights

This Leeson gearmotor is ideal for general purpose applications requiring durability and consistent performance. It features precision machined gearing and heavy-duty industrial oil seals.

Product Information

Standard Information

• Brand: LEESON
• Manufacturer Part Number: 108707
• Country of Origin: United States of America

Technical Specifications

• Design: Parallel Shaft
• Input HP: 1/2
• Output KW: 0.37
• Output RPM: 18
• Gear Ratio: 95
• Torque Lb-in.: 1112
• Overhung Load (lb.): 700
• Voltage: 90 Volts DC
• Full Load Amperage: 5.0
• Application: General Purpose
• Output HP: 0.50 Hp
• Speed: 18 rpm
• Service Factor: 1
• Frame: 48Y
• Enclosure: TEFC = Totally Enclosed Fan Cooled
• Thermal Protection: No Protection
• Efficiency: 66.9 %
• Ambient Temperature: 40 °C
• Current: 5.0 A
• Duty: Continuous
• Insulation Class: F
• Drive End Bearing Size: 6203
• Opp Drive End Bearing Size: 6203
• UL: Recognized
• CSA: Y
• CE: N
• Rotation: Reversible
• Mounting: Special
• Shaft Type: Keyed
• Overall Length: 16.31 in
• Frame Length: 5.97 in
• Shaft Diameter: 0.750 in
• Shaft Extension: 1.5 in
• Rated Load (HP): 1/2
• MPN: 108707
• Mounting Type: Base-Mounted, Foot-Mounted
• DC Stator/Winding Type: Permanent Magnet
• Brand: Leeson
• Reversible/Non-Reversible: Reversible
• Current Type: DC
• Model: 108707.00
• Nominal Rated Input Voltage: 90 V
• NEMA Frame Suffix: Y (Non-Standard NEMA Mount)
• Amps: 5.0
• S.F.: 1
• Shaft: 0.750" X 1.5" Parallel
• Horsepower: 1/2 hp
• Over Hung Pounds: 700
• Insulation: Class F
• Bearings: Ball Bearings
