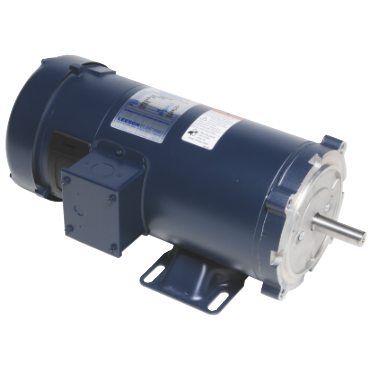

Leeson 108262.00 SCR Rated Permanent Magnet DC Motor 1 1/2 hp

Product Description

The Leeson 108262.00 is a SCR rated permanent magnet DC motor designed for applications requiring adjustable speed and constant torque.

• Motor speeds of up to 1800 RPM
• 180 VDC armature voltage
• Robust C-Face design with removable base

Product Highlights

This motor features a brush holder design that provides easy access for maintenance and a durable construction for various applications.

Product Information

Standard Information

• Brand: Leeson
• Part Number: 108262.00

Technical Specifications

• Motor Application: General Purpose
• Enclosure: TEFC - Totally Enclosed Fan Cooled
• Field Weakened RPM: 1750 RPM
• Mounting: C-Face - Removable Base
• Frame: S56/145TC
• Armature Voltage: 180 V
• C Dimension: 17.38 inches
• Winding: Permanent Magnet
• Base Speed: 1750 RPM
• Armature Amps Full Load: 7.6 A
• Control Voltage AC Input: 230 V
• HP: 1 1/2 hp
• Weight: 57.0 LB
• EAN or UPC: 691720006863
