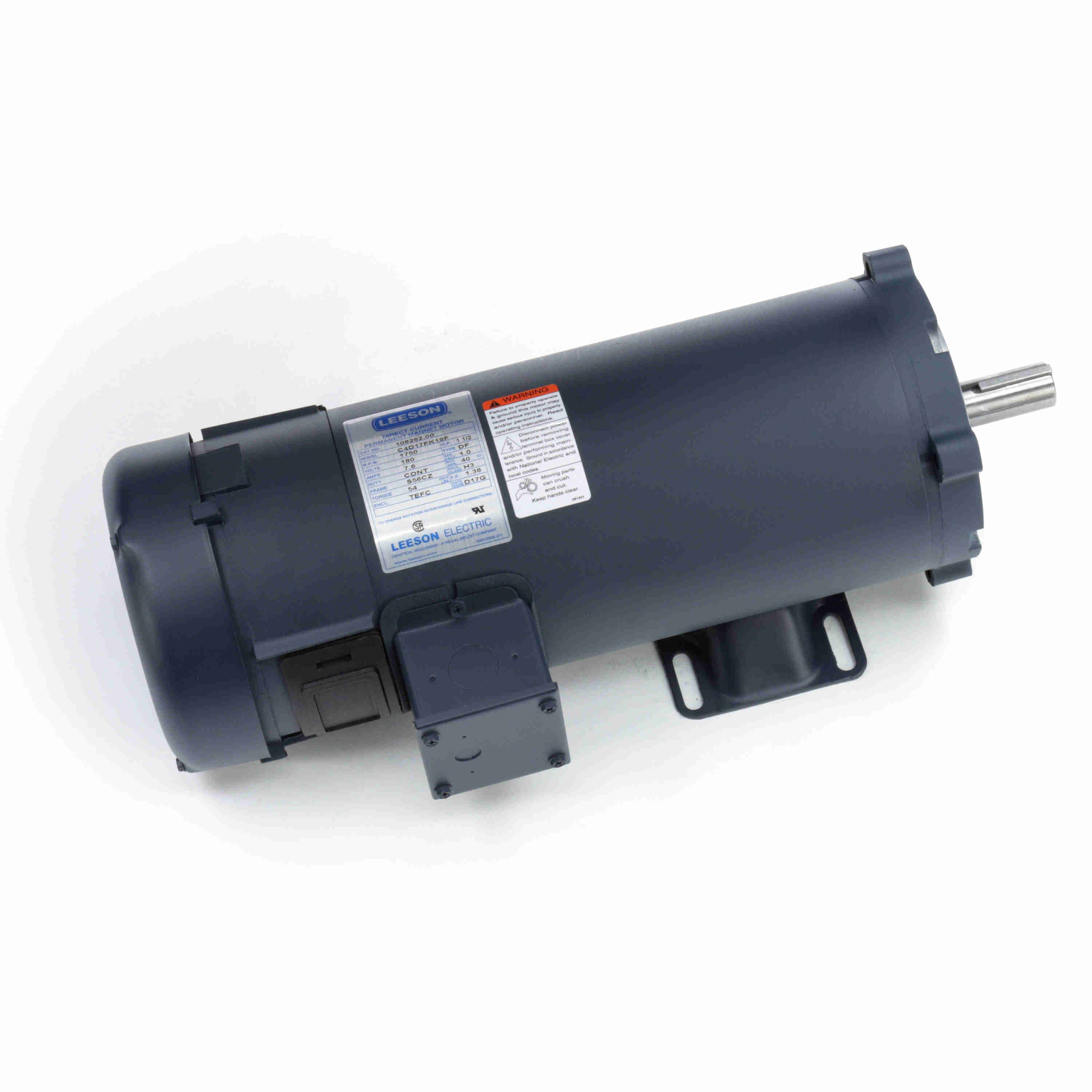

Leeson 108262.00 SCR Motor, 1.50 HP, 180 V, 1750 RPM, S56CZ Frame

Leeson 108262 SCR Motor, 1.50 HP, 180 V, 1750 RPM, S56CZ Frame

KEY FEATURES
UL and CSA Listed, Meeting NEMA MG1 standards.
Brush holder design provides easy access for motor maintenance.
Permanent magnet design ensures higher motor efficiency.
Permanently lubricated sealed bearings extend the lifetime of the motor.
Compatible with PWM or SCR type controllers.

General Specifications
Packaged Length: 19.5 IN
Packaged Height: 10.88 IN
Packaged Width: 10.44 IN
Weight: 52.00 LB
Country of Origin: United States of America

Nameplate Specifications
• Output HP: 1.50 Hp
• Voltage: 180 V
• Speed: 1750 rpm
• Efficiency: 86.5 %
• Insulation Class: H
• Enclosure: Totally Enclosed Fan Cooled
• Ambient Temperature: 40 °C
• Opp Drive End Bearing Size: 6203
• CSA: Y
• Drive End Bearing Size: 6203
• UL: Recognized
• CE: N

Technical Specifications
• Rotation: Reversible
• Overall Length: 17.39 in
• Shaft Diameter: 0.875 in
• Torque: 54 LB-IN
• Opp Drive End Bearing: Ball
• Shaft Type: NEMA 56
• Frame Length: 6.00 in
• Shaft Extension: 1.88 in
• Mounting: Rigid C base
• Frame Length: 9.97 in
• Shaft Extension: 2.13 in
• Drive End Bearing: Ball
