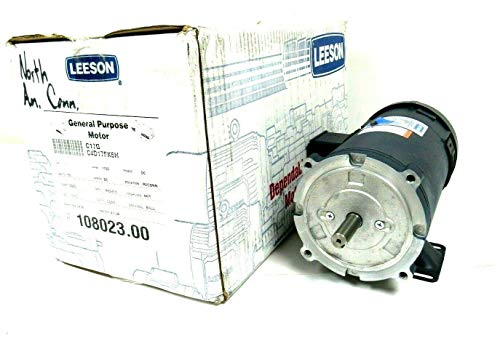

Leeson 108023.00 scr Rated Permanent Magnet DC Motor 1 HP S56C C4D17FK6

Product Description

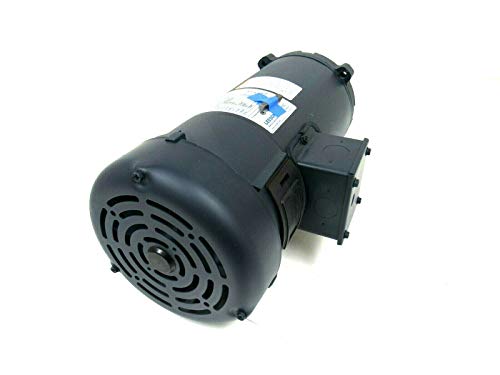

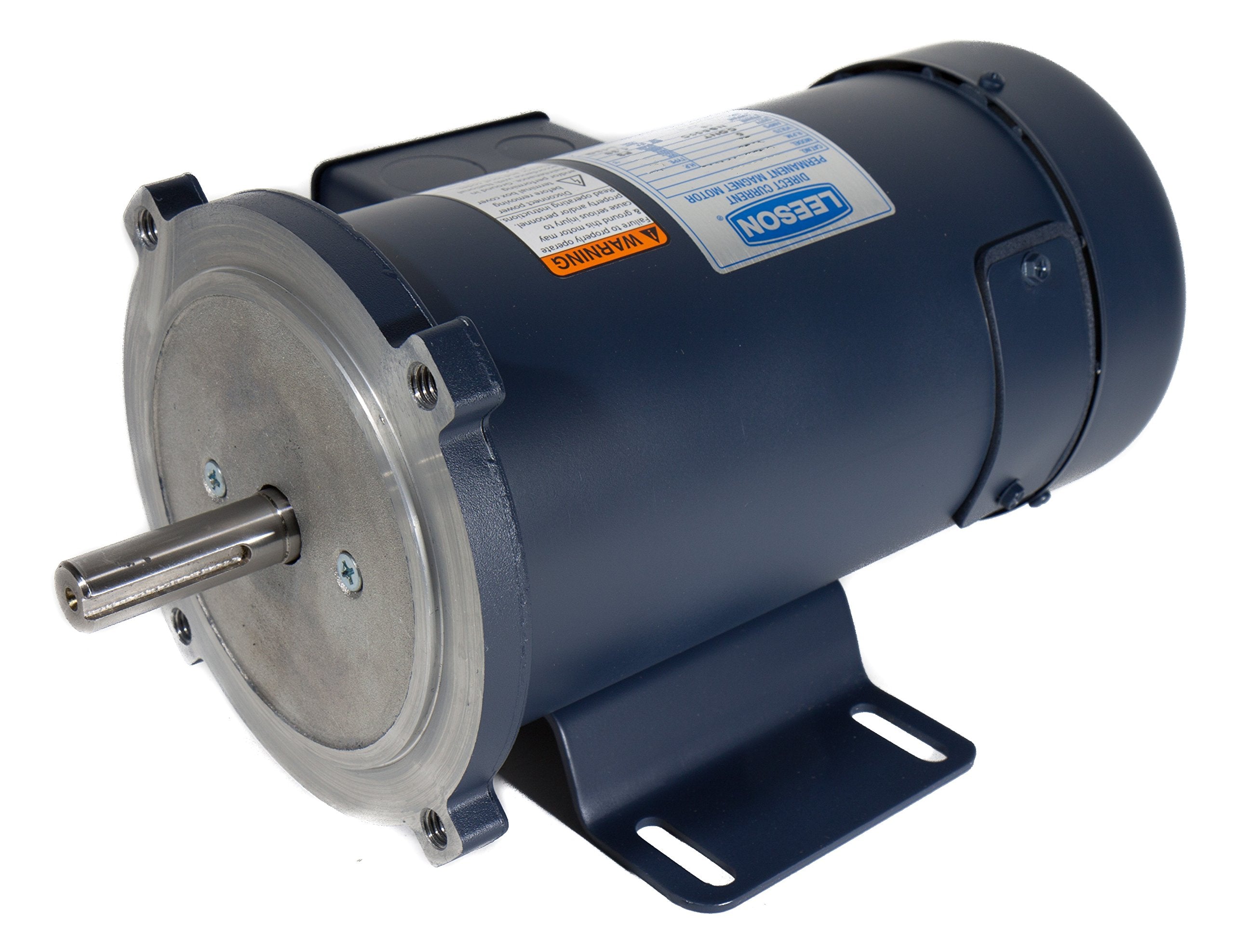

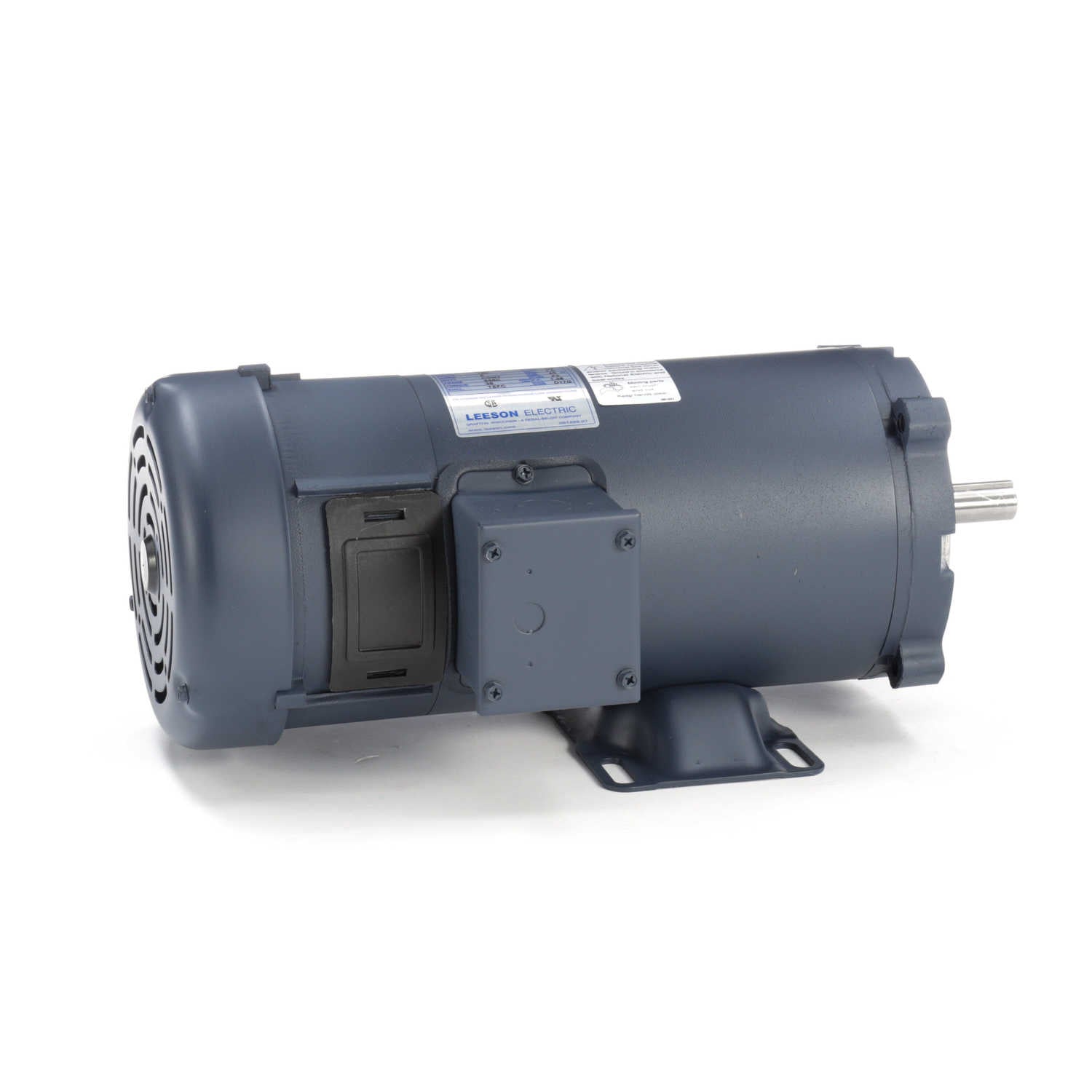

The LEESON 108023.00 is a high voltage permanent magnet DC motor typically used with an SCR controller for applications requiring adjustable speed and constant torque. It is also widely used in applications requiring motor speed adjustment and reversing capabilities. The motor features a TEFC enclosure and a heavy-duty, stamped steel, bolt-on removable base.

• Unique brush holder design provides easy access to brushes
• Large oversized brushes ensure longer brush life
• Permanently lubricated, sealed ball bearings

Product Highlights

This DC motor is suitable for applications needing adjustable speed, constant torque, and reversing capabilities. It features a TEFC enclosure and easy brush access.

Product Information

Standard Information

• Brand: LEESON
• Manufacturer Part Number: 108023.00
• Country of Origin: United States

Technical Specifications

• Enclosure: TEFC
• Service Factor: 1
• HP: 1 hp
• Inch/Metric: Inch
• Armature Amps Full Load: 5 A
• Winding: Permanent Magnet
• Motor Application: General Purpose
• Field Voltage: 180 V
• Frame: S56C
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• C Dimension: 14.81 in
• Base Speed: 1750 rpm
• Mounting: C-Face - Removable Base
• Armature Voltage: 180 V
• Nameplate RPM: 1,750
• Voltage: 180V DC
• Full Load Amps: 5.0 A
• Full Load Torque: 36 in-lb
• Motor Thermal Protection: None
• Ins. Class: F
• Max. Ambient Temp.: 40 Degrees C
• Motor Shaft Rotation: CW/CCW
• Duty Cycle: Continuous
• Motor Enclosure Design: Totally Enclosed Fan-Cooled
• Motor Mounting Type: Face, Base
• Removable Base: Yes
• Shaft Dia.: 5/8 in
• Motor Bearings: Ball
• Shaft Length: 2.06"
• Brand: Leeson
• Manufacturer: Leeson Electric
• MPN: 108023.00
• Rotation: Reversible
• Mounting Type: Rigid, C-Face
• Overall Length: 14.82 in
• Frame Length: 7.47 in
• Shaft Diameter: 0.625"
• Shaft Extension: 2.06 in
• Torque: 36 LB-IN
• Current Rating: 5 A
• Efficiency: 85% %
• Frame Size: 56C
• Horsepower Rating: 1 hp
• Insulation Type: Class F
• Nominal Voltage: 180 V
• Speed: 1750 RPM
• Standards: UL Recognized
• Actual Rated Input Voltage: 180
• Rated Load (HP): 1
• Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
• Base RPM: 1800
• Shaft Type: Keyed
• DC Stator/Winding Type: Permanent Magnet
• Reversible/Non-Reversible: Reversible
• Current Type: DC
• Nominal Rated Input Voltage: 180 V
• Model: C4D17FK6J
• NEMA Frame Suffix: C
• Country of Origin: United States
• Output KW: 0.75 kW
• Ambient Temperature: 40 °C
• Current: 5.0 A
• UL: Recognized
• CSA: Y
• CE: N
• Mount NEMA: C-Face With Base
• Input Voltage DC: 180
• Enclosure NEMA: TEFC
• Listings: UL and CSA Listed; Meets NEMA MG1 standards
• RPM: 1750
