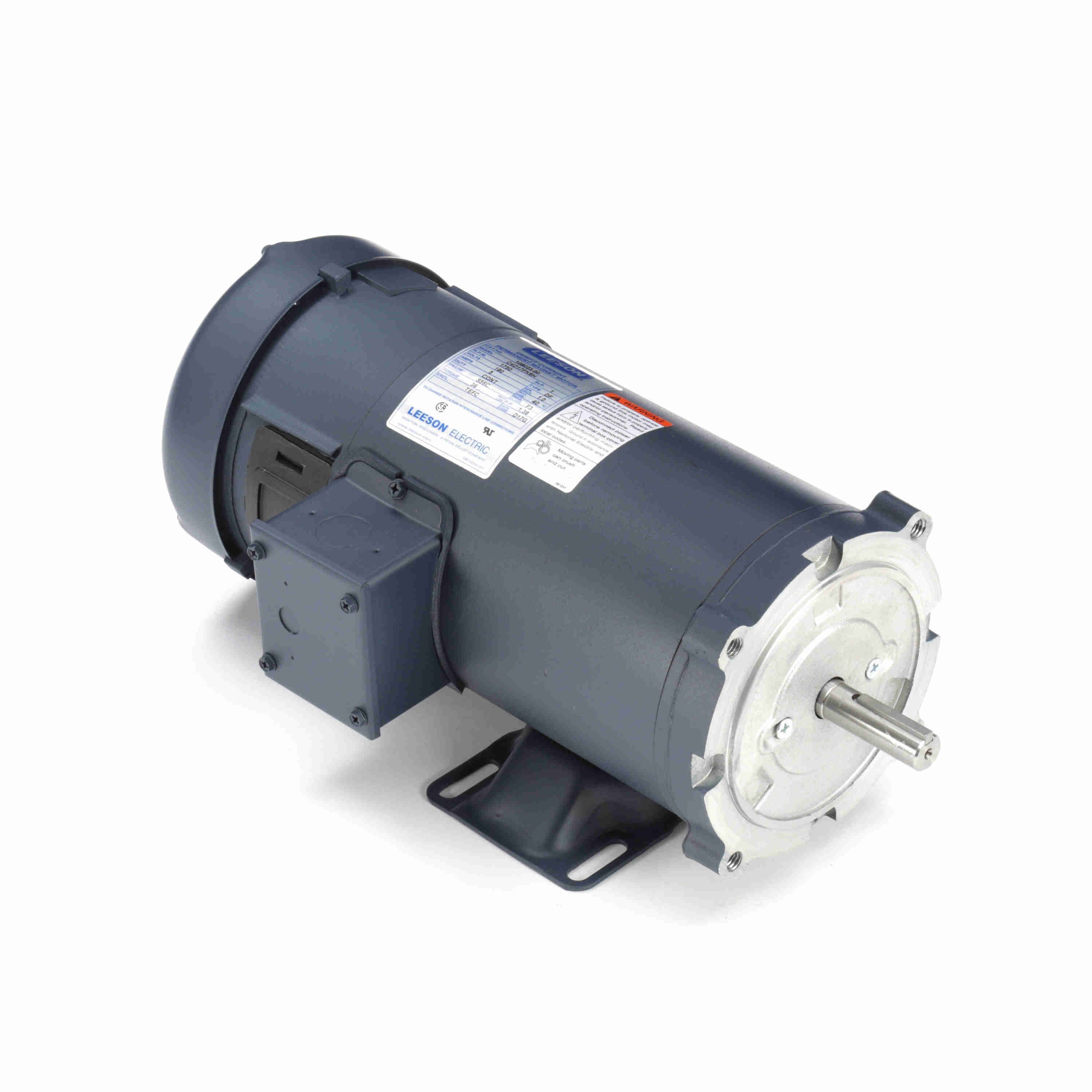

Leeson 108023.00 SCR Motor, 1 HP, 180 V, 1750 RPM, S56C Frame, TEFC
KEY FEATURES
UL and CSA Listed, Meeting NEMA MG1 standards.
Brush holder design provides easy access for motor maintenance.
Permanent magnet design ensures higher motor efficiency.
Permanently lubricated sealed bearings extend the lifetime of the motor.
Compatible with PWM or SCR type controllers.
General Specifications
• Packaged Length: 19.5 IN
• Packaged Height: 10.88 IN
• Packaged Width: 10.44 IN
• Weight: 40.50 LB
• Country of Origin: United States of America
Nameplate Specifications
• Output HP: 1 Hp
• Voltage: 180 V
• Speed: 1750 rpm
• Efficiency: 85 %
• Insulation Class: F
• Enclosure: Totally Enclosed Fan Cooled
• Ambient Temperature: 40 °C
• Opp Drive End Bearing Size: 6203
• CSA: Y
• Output KW: 0.75 kW
• Current: 5.0 A
• Service Factor: 1
• Duty: Continuous
• Frame: S56C
• Thermal Protection: No Protection
• Drive End Bearing Size: 6203
• UL: Recognized
• CE: N
Technical Specifications
• Rotation: Reversible
• Overall Length: 14.82 in
• Shaft Diameter: 0.625 in
• Torque: 36 LB-IN
• Mounting: Rigid C base
• Frame Length: 7.47 in
• Shaft Extension: 2.06 in
