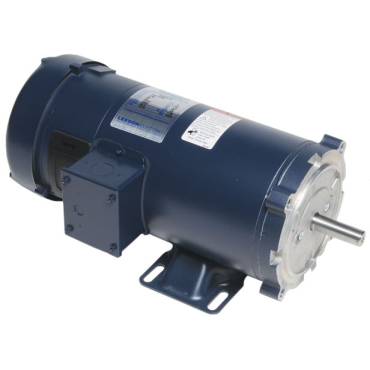

Leeson 108022.00 SCR Rated Permanent Magnet DC Motor 1 hp 1750 RPM

Product Description

The Leeson 108022.00 is a SCR rated permanent magnet DC motor designed for efficient operation in various applications.

• Adjustable speed and constant torque throughout the speed range
• Heavy-duty design suited for general purpose use
• TEFC (Totally Enclosed Fan Cooled) enclosure for durability

Product Highlights

This motor is ideal for tasks requiring motor speed adjustments and reversing applications.

Product Information

Standard Information

• Brand: Leeson
• MPN: 108022.00
• Model Number: 108022

Technical Specifications

• Power: 1 hp
• Speed: 1750 RPM
• Voltage: 90 VDC Armature
• Enclosure: TEFC - Totally Enclosed Fan Cooled
• Frame: S56C
• Weight: 47.0 LB
• C Dimension: 14.82 in
• Field Weakened RPM: 1750 RPM
• Armature Amps Full Load: 10 A
• Control Voltage AC Input: 115 V
• Winding: Permanent Magnet
• Motor Application: General Purpose
• Mounting: C-Face - Removable Base
