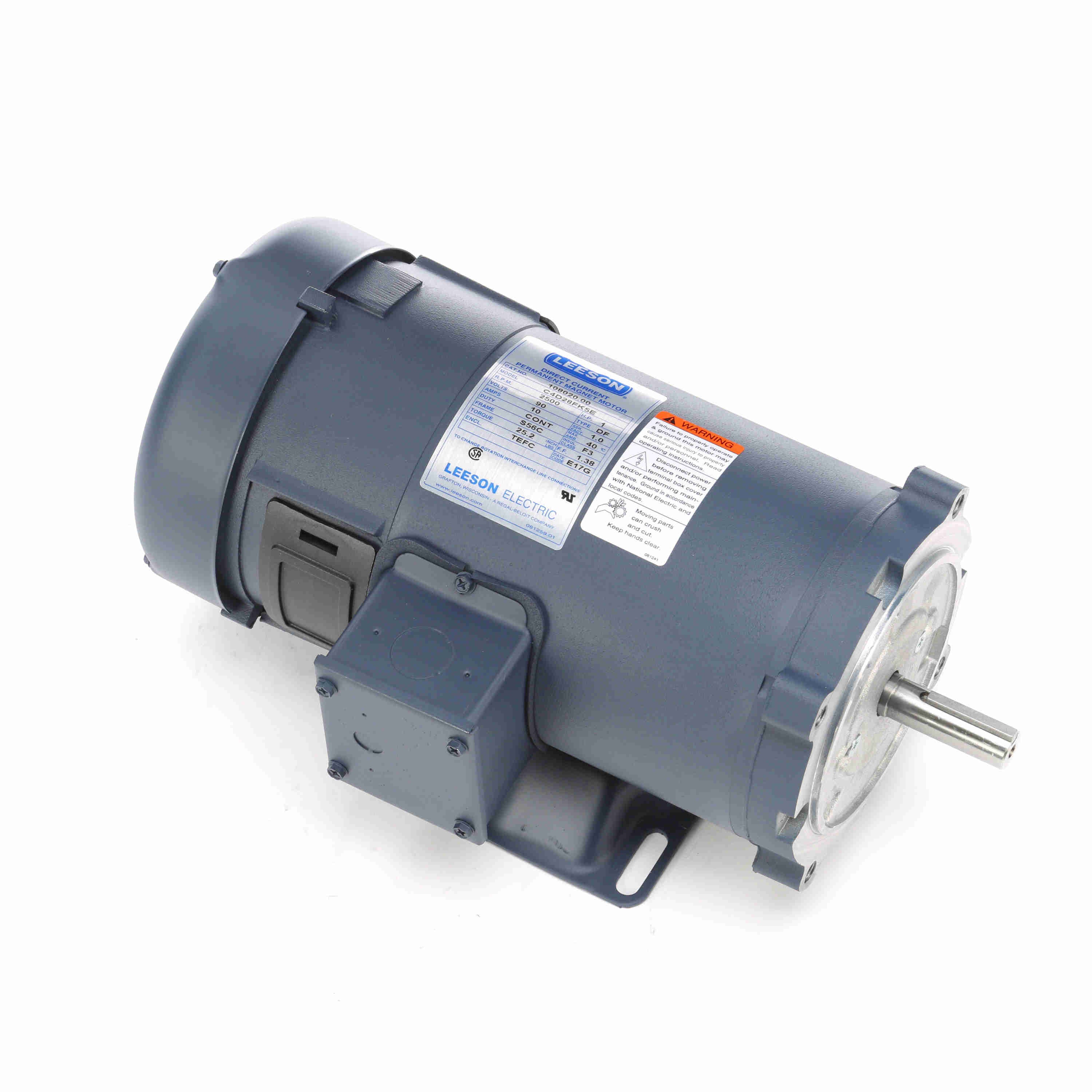

Leeson 108020 SCR Motor, 1 HP, 90 V, 2500 RPM, S56C Frame
KEY FEATURES
UL and CSA Listed, Meeting NEMA MG1 standards.
Brush holder design provides easy access for motor maintenance.
Permanent magnet design ensures higher motor efficiency.
Permanently lubricated sealed bearings extend the lifetime of the motor.
Compatible with PWM or SCR type controllers.
General Specifications
• Packaged Length: 19.5 IN
• Packaged Height: 10.88 IN
• Packaged Width: 10.44 IN
• Weight: 37.00 LB
• Country of Origin: United States of America
Nameplate Specifications
• Output HP: 1 Hp
• Voltage: 90 V
• Speed: 2500 rpm
• Efficiency: 83.4 %
• Insulation Class: F
• Enclosure: Totally Enclosed Fan Cooled
• Ambient Temperature: 40 °C
• Opp Drive End Bearing Size: 6203
• CSA: Y
• Output KW: 0.75 kW
• Current: 10.0 A
• Service Factor: 1
• Duty: Continuous
• Frame: S56C
• Thermal Protection: No Protection
• Drive End Bearing Size: 6203
• UL: Recognized
• CE: N
• Opp Drive End Bearing Size: 6204
• CSA: Y
• IP Code: 56
Technical Specifications
• Rotation: Reversible
• Overall Length: 13.32 in
• Shaft Diameter: 0.625 in
• Torque: 25.2 LB-IN
• Mounting: Rigid C base
• Frame Length: 5.97 in
• Shaft Extension: 2.06 in
• Drive End Bearing: Ball
• Frame Material: Stainless Steel
• Overall Length: 11.62 in
• Shaft Diameter: 0.562 in
• Assembly/Box Mounting: F1 ONLY
