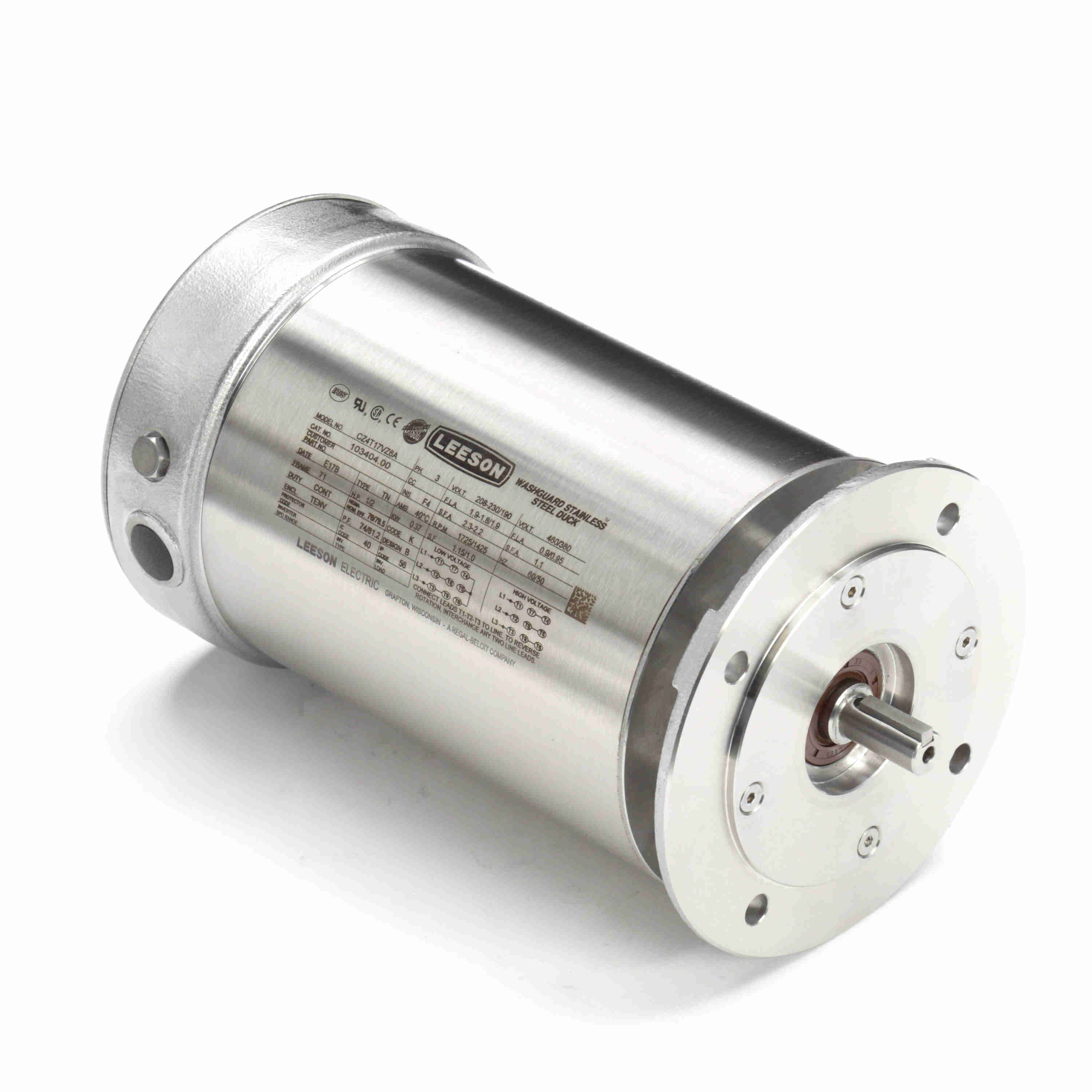

Leeson 103404.00 Premium Duck� 0.50 HP General Purpose, 3 phase, 1800 RPM, 208-230/460 V, 71 Frame

Leeson 103404 Premium Duck™ 0.50 HP General Purpose, 3 phase, 1800 RPM, 208-230/460 V, 71 Frame

KEY FEATURES
UL recognized component listing and CSA certification ensures the product is safe for use.
Full stainless steel exterior promotes resistance to water and chemical corrosion.
Stainless steel output shaft seals protect against external contaminants.
Insulation system offers superior protection against voltage spikes.
Double sealed bearing construction extends the lifetime of the motor.

General Specifications
• Packaged Length: 19.5 IN
• Packaged Height: 10.88 IN
• Packaged Width: 10.44 IN
• Weight: 32.00 LB
• Country of Origin: United States of America

Nameplate Specifications
• Output HP: 0.50 Hp
• Frequency: 60 Hz
• Current: 1.9-1.8/0.90 A
• Service Factor: 1.15
• Efficiency: 76 %
• Duty: Continuous
• Design Code: B
• Frame: 71
• Thermal Protection: No Protection
• Drive End Bearing Size: 6204
• UL: Recognized
• CE: Y
• Number of Speeds: 1
• Output KW: 0.37 kW
• Voltage: 208-230/460 V
• Speed: 1725 rpm
• Phase: 3
• Power Factor: 74
• Insulation Class: F
• KVA Code: K
• Enclosure: Totally Enclosed Non Ventilated
• Ambient Temperature: 40 °C
• Opp Drive End Bearing Size: 6204
• CSA: Y
• IP Code: 56

Technical Specifications
• Electrical Type: Squirrel Cage Induction Run
• Poles: 4
• Resistance Main: 0 Ohms
• Motor Orientation: Horizontal
• Opp Drive End Bearing: Ball
• Shaft Type: IEC
• Frame Length: 7.25 in
• Shaft Extension: 1.18 in
• Starting Method: Across The Line
• Rotation: Reversible
• Mounting: Round
• Drive End Bearing: Ball
• Frame Material: Stainless Steel
• Overall Length: 11.62 in
• Shaft Diameter: 0.562 in
• Assembly/Box Mounting: F1 ONLY
