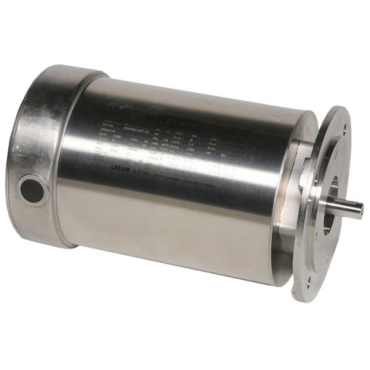

Leeson 103404.00 AC Three Phase Washguard Motors

Product Description

The Leeson 103404.00 is an AC Three Phase Washguard Motor designed for tough applications. This motor is ideal for environments that require regular cleaning, such as food processing plants and areas exposed to moisture and chemicals. It features a stainless steel frame and a TENV enclosure.

• 1/2 horsepower with a speed of 1,725 rpm
• Engineered for high humidity and chemical exposure
• Meets EPACT efficiency standards

Product Highlights

Durable design for reliable operation in harsh conditions.

Product Information

Standard Information

• Brand: Leeson
• MPN: 103404.00

Technical Specifications

• Service Factor: 1.15
• Input Phase: Three Phase
• Frame Material: Stainless Steel
• Motor Application: General Purpose
• Voltage Rating: 208-230/460 V
• Rotation: Reversible
• Enclosure Designation: Totally Enclosed Non Ventilated
• Hz: 60 Hz
• Insulation: F4
• Washdown Duty: Yes
• Frame: 48
• Poles: 4
• C Dimension: 11.62 inches
• Mounting: Round
• Full Load Amps: 2.3-2.2/1.1 A
• HP: 1/2
• Weight: 32.0 LB
• EAN or UPC: 691720989210
