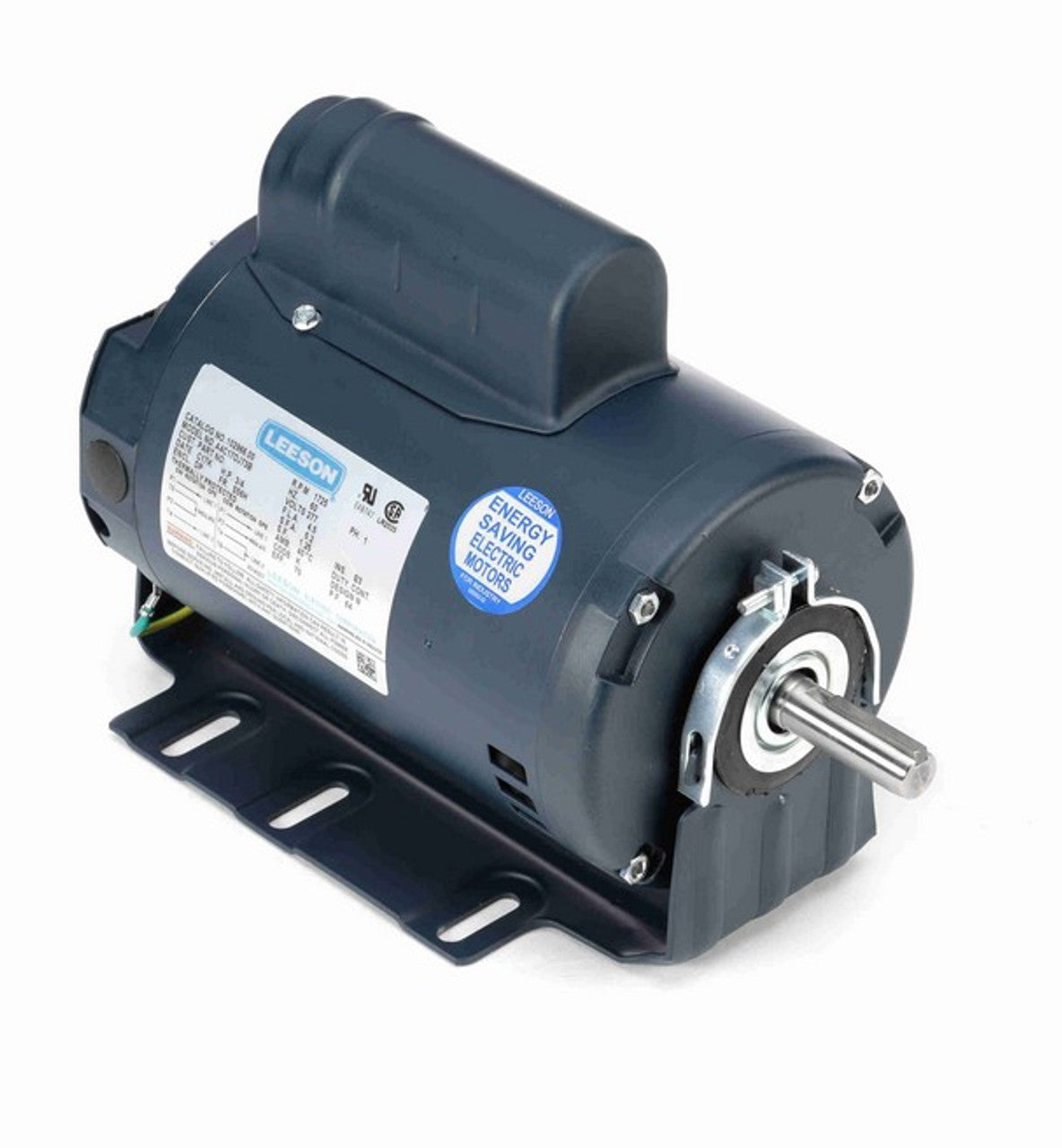

Leeson 102966.00 AC Motor 3/4 HP

Product Description

The Leeson AC Motor, MPN 102966.00, is a reliable motor suitable for fan and blower applications. This motor operates at three-fourths horsepower with a speed of seventeen hundred twenty-five RPM. It features a single-phase design and is optimized for sixty Hertz operation. The motor is equipped with a resilient base mount for easy installation.

• Voltage rating of two hundred seventy-seven volts
• Drip proof enclosure type
• Four-pole design for consistent performance

Product Highlights

This motor is designed to efficiently handle HVAC tasks and is ideal for both commercial and residential use.

Product Information

Standard Information

• Brand: Leeson
• MPN: 102966.00

Technical Specifications

• Voltage Rating: 277
• RPM: 1725
• Frame: S56H
• Service Factor: 1.25
• Drive End Bearing: 6203
• Motor Application: Fan & Blower
• Poles: 4
• Hz: 60
• Frame Material: Rolled Steel
• Full Load Amps: 4.5
• Enclosure: DP
• Mounting: Resilient Base
• Weight: 26.0 LB
• EAN or UPC: 691720988961
• Insulation: B
