Leeson 102912.00 AC Single Phase Totally Enclosed Motors

Product Description

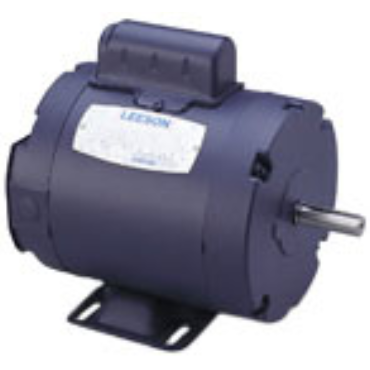

Leeson 102912.00 is an AC single-phase totally enclosed motor suitable for various applications. This motor features a rigid mount design and operates efficiently at a speed of 1,725 RPM. It is built with a TENV enclosure, making it ideal for environments that require protection from dirt and moisture.

• 1/3 horsepower
• Full load amps: 5.8/2.9 A
• Voltage rating: 115/208-230 V

Product Highlights

This motor is designed for general purpose usage, combining safety and high performance.

Product Information

Standard Information

• Brand: Leeson
• MPN: 102912.00

Technical Specifications

• Enclosure: TENV
• Motor Application: General Purpose
• Phase: Single Phase
• HP: 1/3
• Poles: 4
• Weight: 22.0 LB
• Frame: 48
• Efficiency Group: 65
• Service Factor: 1.15
