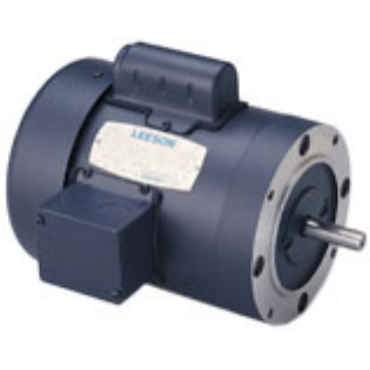

Leeson 102873.00 AC Single Phase Totally Enclosed Motors

Product Description

Leeson 102873.00 is a single-phase AC motor designed for general purpose applications. It features a totally enclosed, fan cooled (TEFC) construction that protects its components from external elements. This motor is suitable for various mounting needs and operates efficiently.

• 1/3 horsepower output
• Operating speed of 3,450 RPM
• Voltage rating at 115/208-230 volts

Product Highlights

This motor delivers reliability and long-term performance for HVAC, plumbing, and other industrial applications.

Product Information

Standard Information

• Brand: Leeson
• Part #: 101537586

Technical Specifications

• Enclosure: TENV
• Frame: 48
• HP: 1/3
• Rotation: Selective CCW
• Voltage Rating: 115/208-230 V
• Insulation: B3
• Drive End Bearing: 6203
• Input Phase: Single Phase
• Poles: 2
• Efficiency Group: 74
• Service Factor: 1
• Frame Material: Rolled Steel
• Full Load Amps: 3.8/2-1.9
• Weight: 25.0 LB
• C Dimension: 9.3 in
