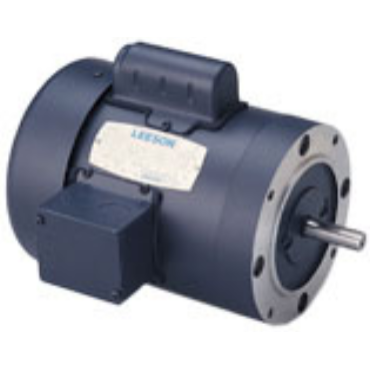

Leeson 102872.00 AC Single Phase Totally Enclosed Motors

Product Description

The Leeson 102872.00 is an AC single-phase totally enclosed motor designed for various applications. This motor features a robust TEFC enclosure, making it suitable for environments where moisture and dust may be present.

• 1/2 hp power output
• Operates at 3,450 rpm
• Round mounting style

Product Highlights

This motor is ideal for general-purpose use and provides reliable performance in various operating conditions.

Product Information

Standard Information

• Brand: Leeson
• MPN: 102872.00

Technical Specifications

• Enclosure: TEFC
• Frame Material: Rolled Steel
• RPM: 3450 rpm
• Phase: Single Phase
• Service Factor: 1.15
• Hz: 60 Hz
• Mounting: Round
• Rotation: Selective CCW
• Motor Application: General Purpose
• Efficiency Group: 66
• Poles: 2
• Drive End Bearing: 6203
• Open End Bearing: 6203
• Full Load Amps: 7.6/3.8-3.8 A
• Voltage Rating: 115/208-230 V
• Frame: 48
• Weight: 19.0 LB
• Model No.: 102872
• C Dimension: 9.94 in
• Insulation: B3
• EAN or UPC: 691720326527
