Leeson 102868 1/4HP 1725RPM Motor 115/208-230V S56C TENV 1Ph 60Hz

Product Description

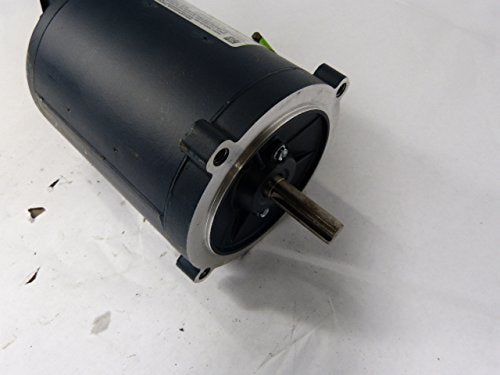

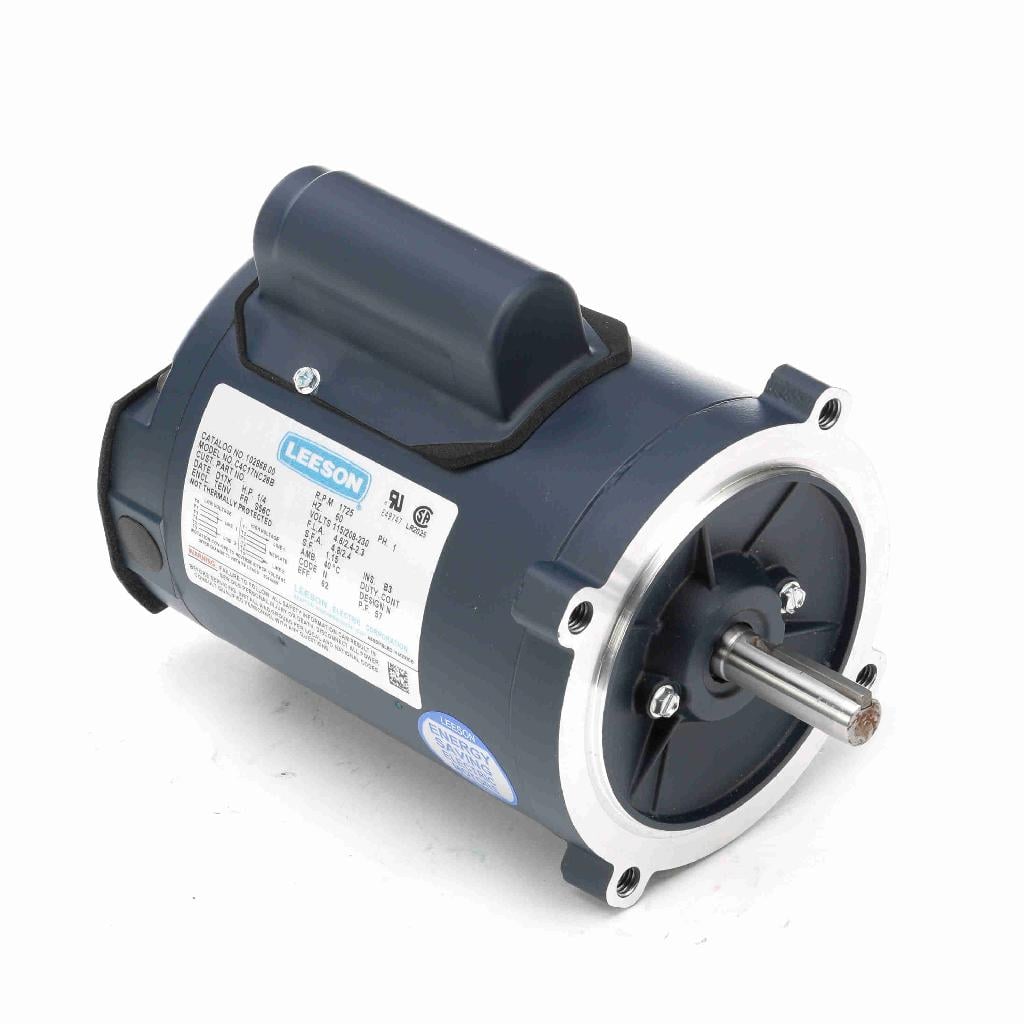

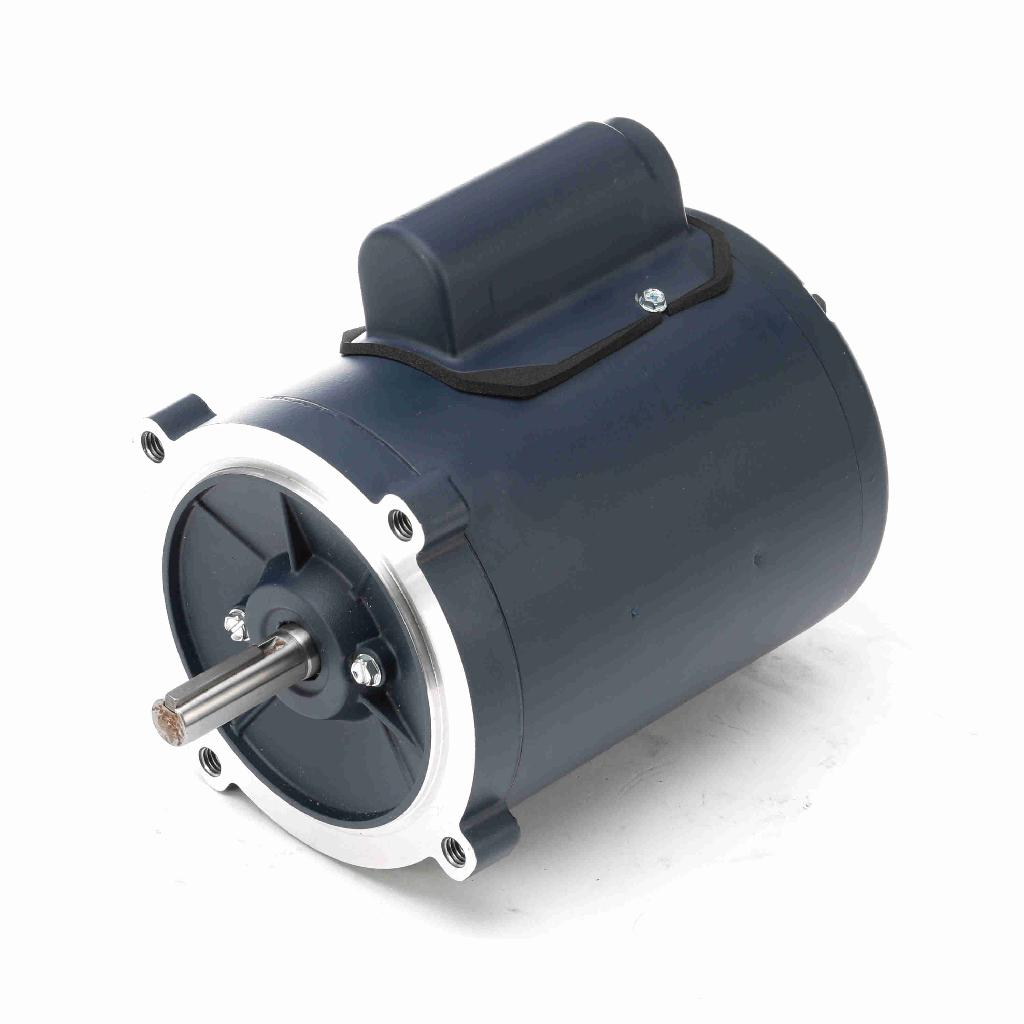

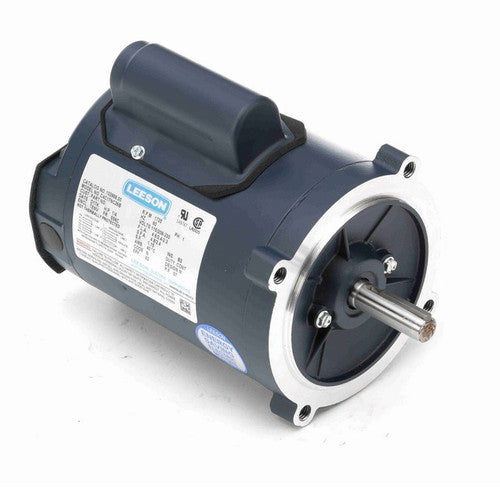

The LEESON 102868 is a 1/4 HP, 1725 RPM motor operating at 115/208-230V, 60Hz. This single-phase motor features a S56C frame and a Totally Enclosed Non Ventilated (TENV) enclosure. It is a capacitor start induction run motor with selective counterclockwise rotation and durable rolled steel construction.

• Durable rolled steel construction
• NEMA Design B performance
• Meets or exceed NEMA service factors
• Double shielded ball bearings

Product Highlights

This general-purpose motor is UL recognized and CSA certified, suitable for various industrial applications requiring reliable performance.

Product Information

Standard Information

• Brand: LEESON
• Manufacturer Part Number: 102868
• Country of Origin: Mexico

Technical Specifications

• Brand: Leeson
• MPN: 102868
• Manufacturer: Leeson
• Product Type: ELECTRONIC_COMPONENT
• Phase: 1
• Output HP: 0.25 Hp
• Output KW: 0.19 kW
• Voltage: 115/230 V
• Speed: 1725 rpm
• Service Factor: 1.15
• Frame: S56C
• Enclosure: Totally Enclosed Non Ventilated
• Thermal Protection: No Protection
• Efficiency: 62 %
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 4.6/2.3 A
• Power Factor: 57
• Duty: Continuous
• Insulation Class: B
• Design Code: N
• KVA Code: N
• Drive End Bearing Size: 6203
• Opp Drive End Bearing Size: 6203
• UL: Recognized
• CSA: Y
• CE: N
• IP Code: 43
• Number of Speeds: 1
• Electrical Type: Capacitor Start Induction Run
• Starting Method: Across The Line
• Poles: 4
• Rotation: Selective Counterclockwise
• Resistance Main: 59.9 Ohms
• Mounting: Round
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: NEMA 56
• Overall Length: 9.80 in
• Frame Length: 5.75 in
• Shaft Diameter: 0.625 in
• Shaft Extension: 1.88 in
• Assembly/Box Mounting: F1 ONLY
• UPC: 691720326480
• Frame Remarks: FOOTLESS
• Full Load Amps: 4.6/2.4-2.3 A
• NEMA Frame: S56C
• C Dimension: 9.80 in
• NEMA Service Factor: 1.15
• Base: C Face Less Base
• Type: Capacitor Start
• Usage: General Purpose
