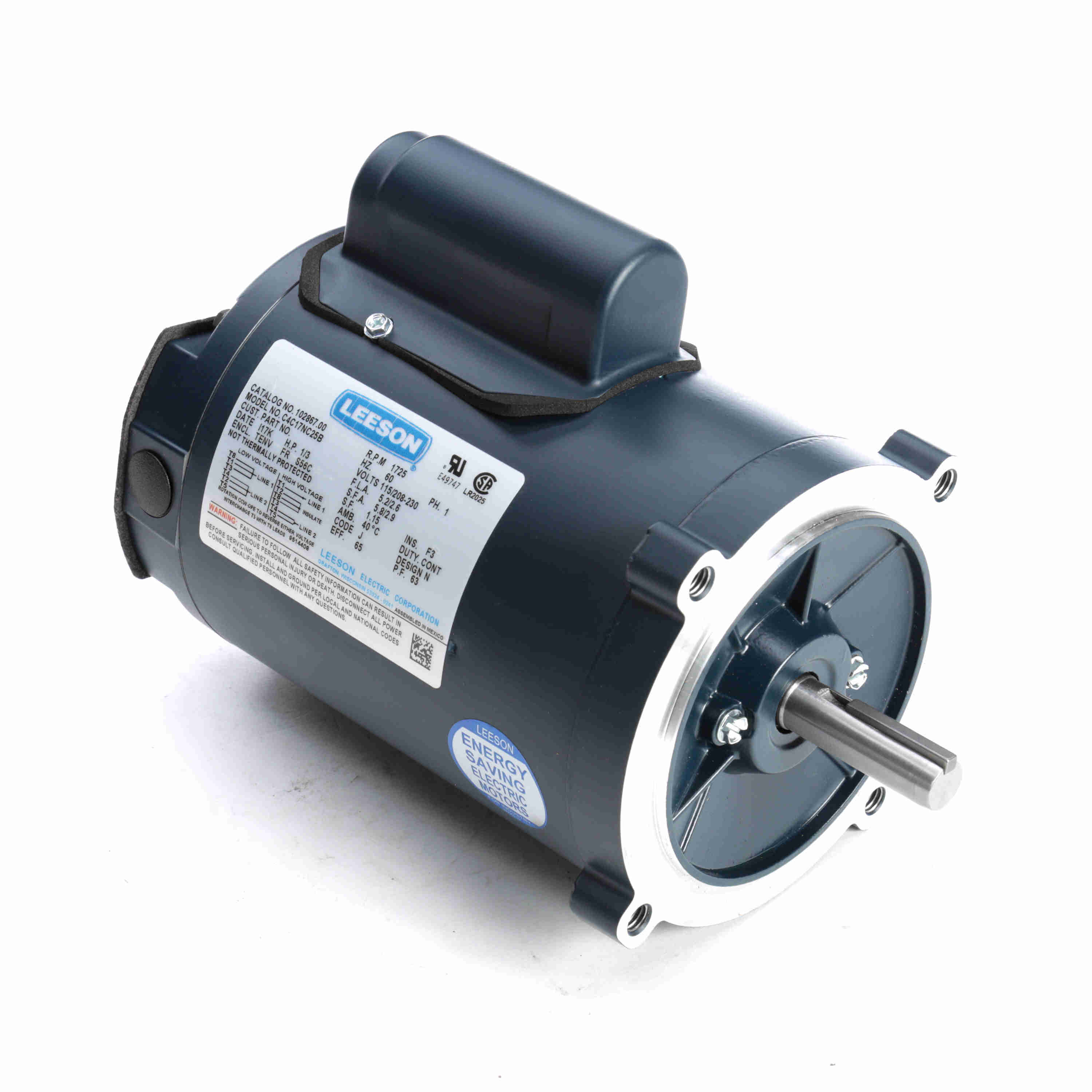

Leeson 102867.00 General Purpose Motor, 0.33 HP, 1 Ph, 60 Hz, 115/208-230 V, 1800 RPM, S56C Frame, TENV - 102867.00

Leeson 102867 General Purpose Motor, 0.33 HP, 1 Ph, 60 Hz, 115/208-230 V, 1800 RPM, S56C Frame, TENV - 102867.00

KEY FEATURES
Durable rolled steel construction
NEMA Design B performance
Meets or exceed NEMA service factors
Double shielded ball bearings
Continuous duty
UL recognized component listing and CSA certified

General Specifications
• Packaged Length: 13.75 IN
• Packaged Height: 8.75 IN
• Packaged Width: 7.88 IN
• Weight: 21.00 LB

Nameplate Specifications
• Output HP: 0.33 Hp
• Frequency: 60 Hz
• Current: 5.2/2.9-2.6 A
• Service Factor: 1.15
• Efficiency: 65 %
• Duty: Continuous
• Design Code: N
• Frame: S56C
• Thermal Protection: No Protection
• Drive End Bearing Size: 6203
• UL: Recognized
• CE: N
• Number of Speeds: 1
• Output KW: 0.25 kW
• Voltage: 115/208-230 V
• Speed: 1725 rpm
• Phase: 1
• Power Factor: 63
• Insulation Class: F
• KVA Code: J
• Enclosure: Totally Enclosed Non Ventilated
• Ambient Temperature: 40 °C
• Opp Drive End Bearing Size: 6203
• CSA: Y
• IP Code: 43

Technical Specifications
• Electrical Type: Capacitor Start Induction Run
• Poles: 4
• Resistance Main: 1.564 Ohms
• Motor Orientation: Horizontal
• Opp Drive End Bearing: Ball
• Shaft Type: NEMA 56
• Frame Length: 6.25 in
• Shaft Extension: 1.88 in
• Starting Method: Across The Line
• Rotation: Selective Counterclockwise
• Mounting: Round
• Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Overall Length: 10.30 in
• Shaft Diameter: 0.625 in
• Assembly/Box Mounting: F1 ONLY
