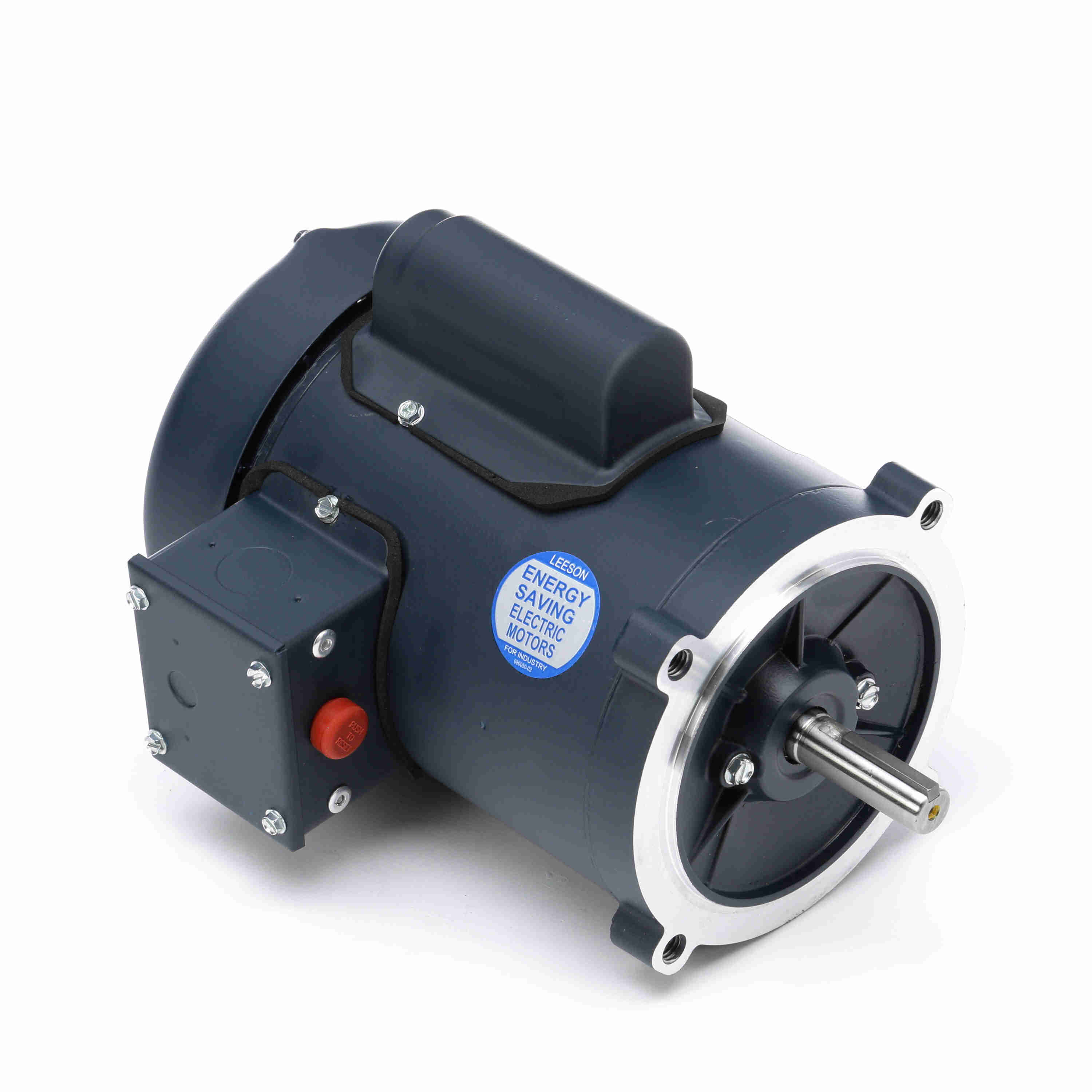

Leeson 102865.00 General Purpose Motor, 0.50 HP, 1 Ph, 60 Hz, 115/208-230 V, 1800 RPM, 56C Frame

Leeson 102865 General Purpose Motor, 0.50 HP, 1 Ph, 60 Hz, 115/208-230 V, 1800 RPM, 56C Frame

KEY FEATURES
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Continuous duty cycle design allows maximum operation at the rated power. specifications
Heavy-duty, rolled steel construction ensures motor durability.
Permanently lubricated sealed bearings extend the lifetime of the motor.
Capacitor start design optimizes motor torque and efficiency performance.

General Specifications
• Packaged Length: 13.75 IN
• Packaged Height: 8.75 IN
• Packaged Width: 7.88 IN
• Weight: 21.00 LB

Nameplate Specifications
• Output HP: 0.50 Hp
• Frequency: 60 Hz
• Current: 8.0/3.8-4.0 A
• Service Factor: 1.15
• Efficiency: 66 %
• Duty: Continuous
• Design Code: NO DESIGN CODE
• Frame: 56C
• Thermal Protection: Manual
• Drive End Bearing Size: 6203
• UL: Recognized
• CE: Y
• Number of Speeds: 1
• Output KW: 0.37 kW
• Voltage: 115/208-230 V
• Speed: 1725 rpm
• Phase: 1
• Power Factor: 61
• Insulation Class: F
• KVA Code: L
• Enclosure: Totally Enclosed Fan Cooled
• Ambient Temperature: 40 °C
• Opp Drive End Bearing Size: 6203
• CSA: Y
• IP Code: 43

Technical Specifications
• Electrical Type: Capacitor Start Induction Run
• Poles: 4
• Resistance Main: 4.293 Ohms
• Motor Orientation: Horizontal
• Opp Drive End Bearing: Ball
• Shaft Type: NEMA 56
• Frame Length: 6.00 in
• Shaft Extension: 1.88 in
• Starting Method: Across The Line
• Rotation: Selective Counterclockwise
• Mounting: Round
• Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Overall Length: 10.69 in
• Shaft Diameter: 0.625 in
• Assembly/Box Mounting: F1 ONLY
